About Your System 59
Figure 1-22 shows the port connections for a full-height blade in bay 3 with
four mezzanine cards.

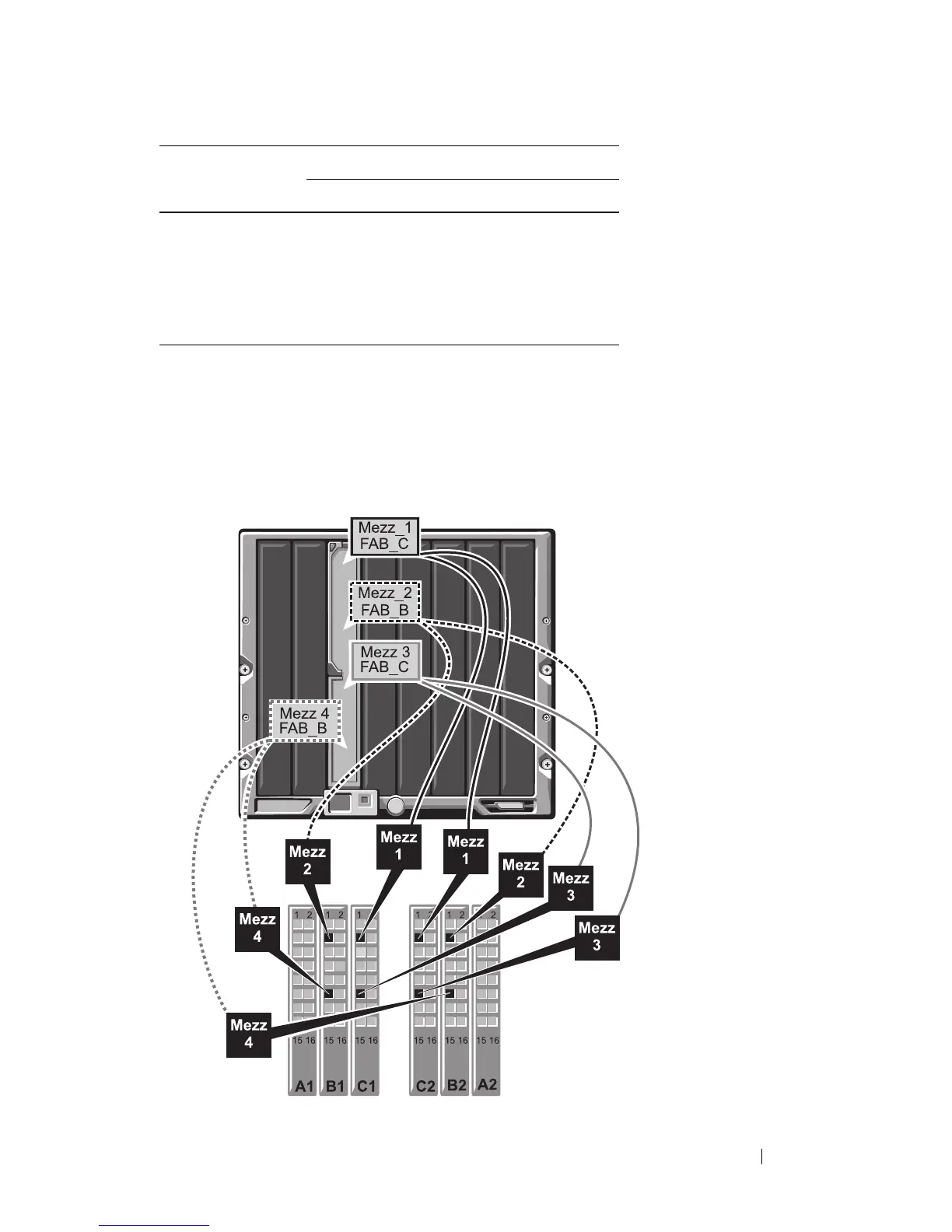

Figure 1-22. Example of Full-Height Blade Port Mapping – Blade 3 (not applicable to
M610x)
Blade 8 I/O Module V
B1 C1 C2 B2
Mezz1_Fab_C Port 8 Port 8
Mezz2_Fab_B Port 8 Port 8
Mezz3_Fab_C Port 16 Port 16
Mezz4_Fab_B Port 16 Port 16
