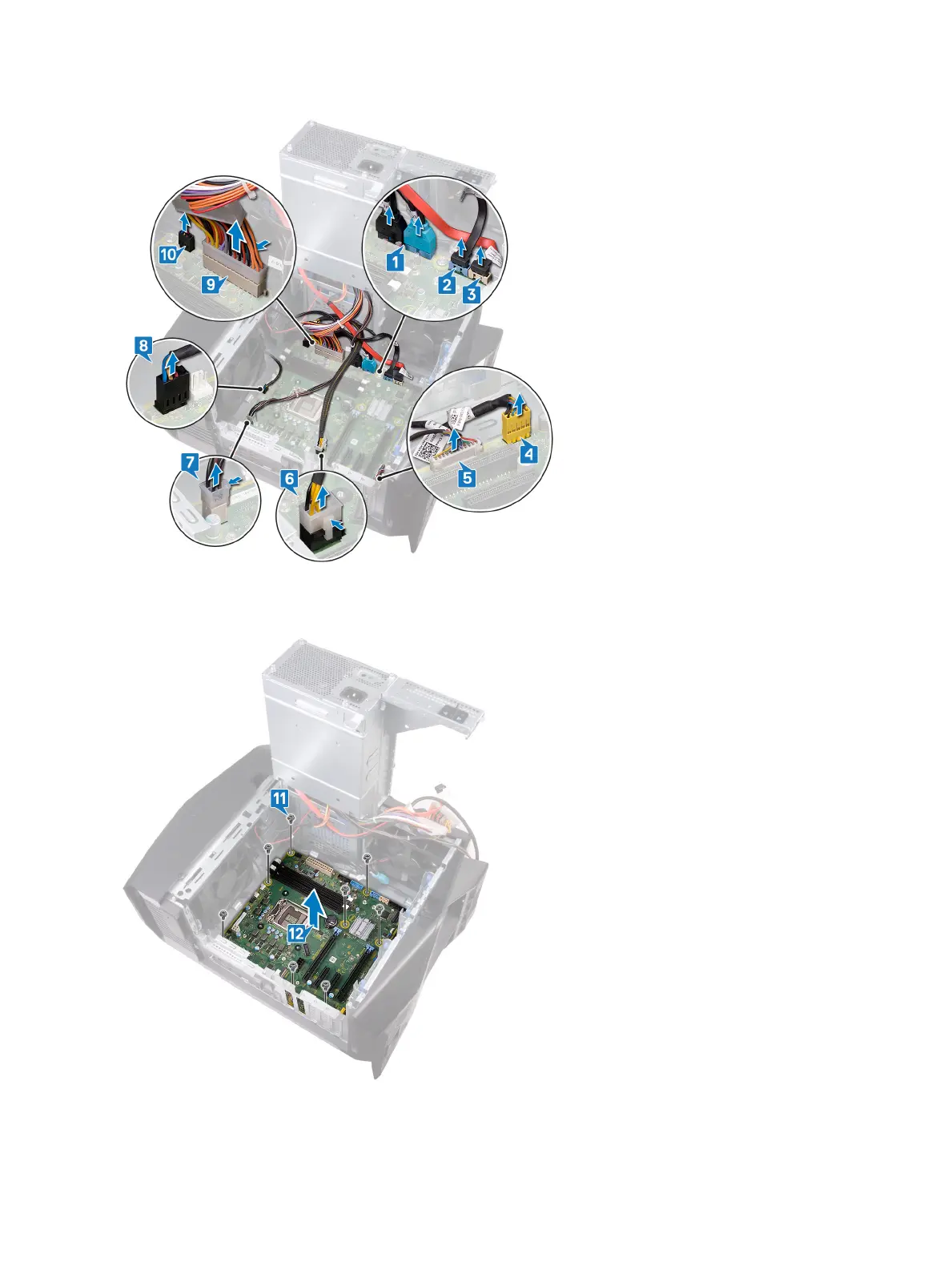

10 Disconnect the front-chassis fan cable from the system board.

11 Remove the eight screws (#6-32 X 1/4") that secure the system-board assembly to the chassis.

12 Lift the system-board assembly out of the chassis.

100
