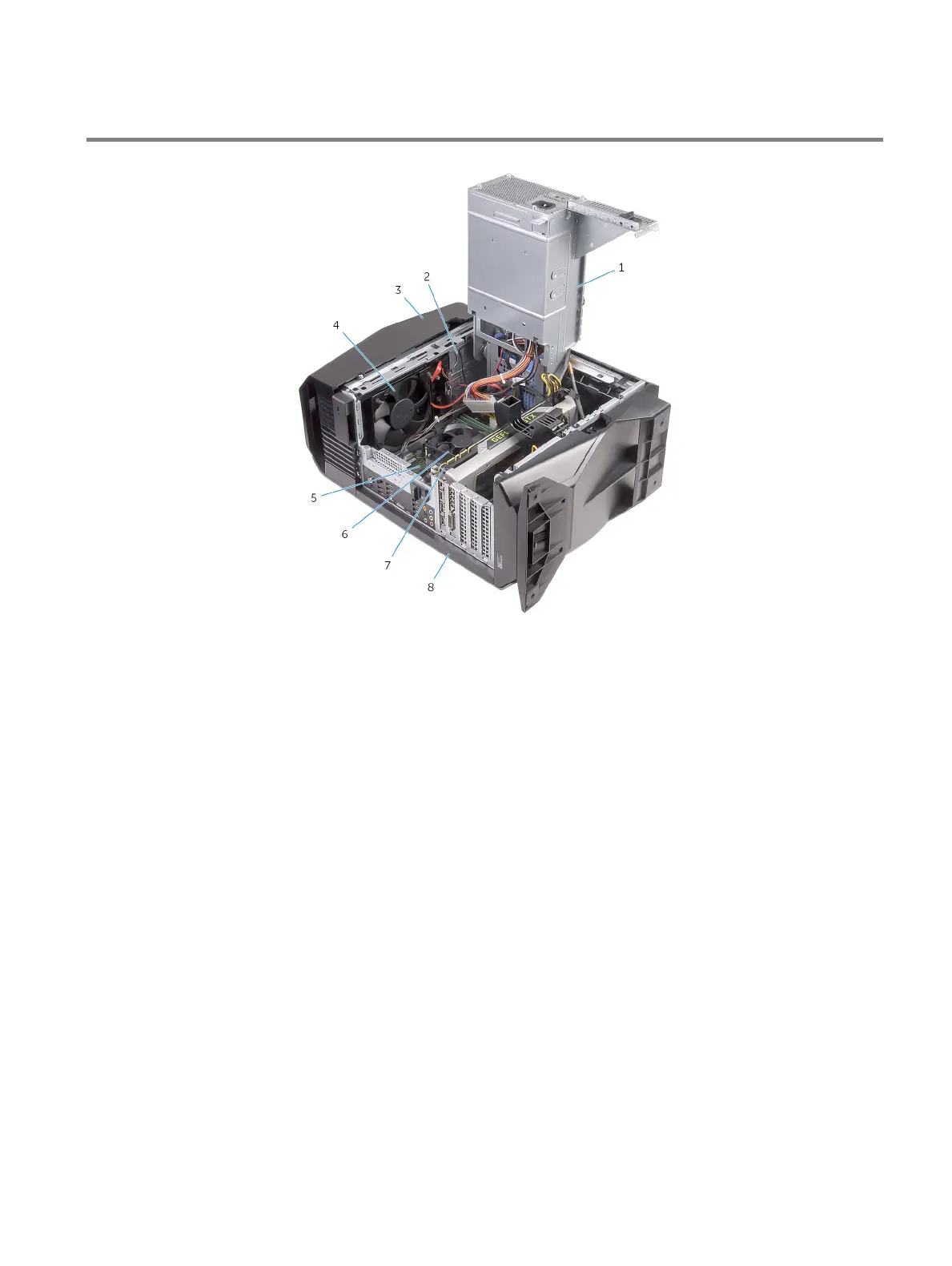

Inside view of your computer

1 power-supply unit 2 optical-drive assembly

3 top cover 4 top-chassis fan

5 system board 6 processor fan and heat-sink assembly

7 graphics card 8 right-side cover
