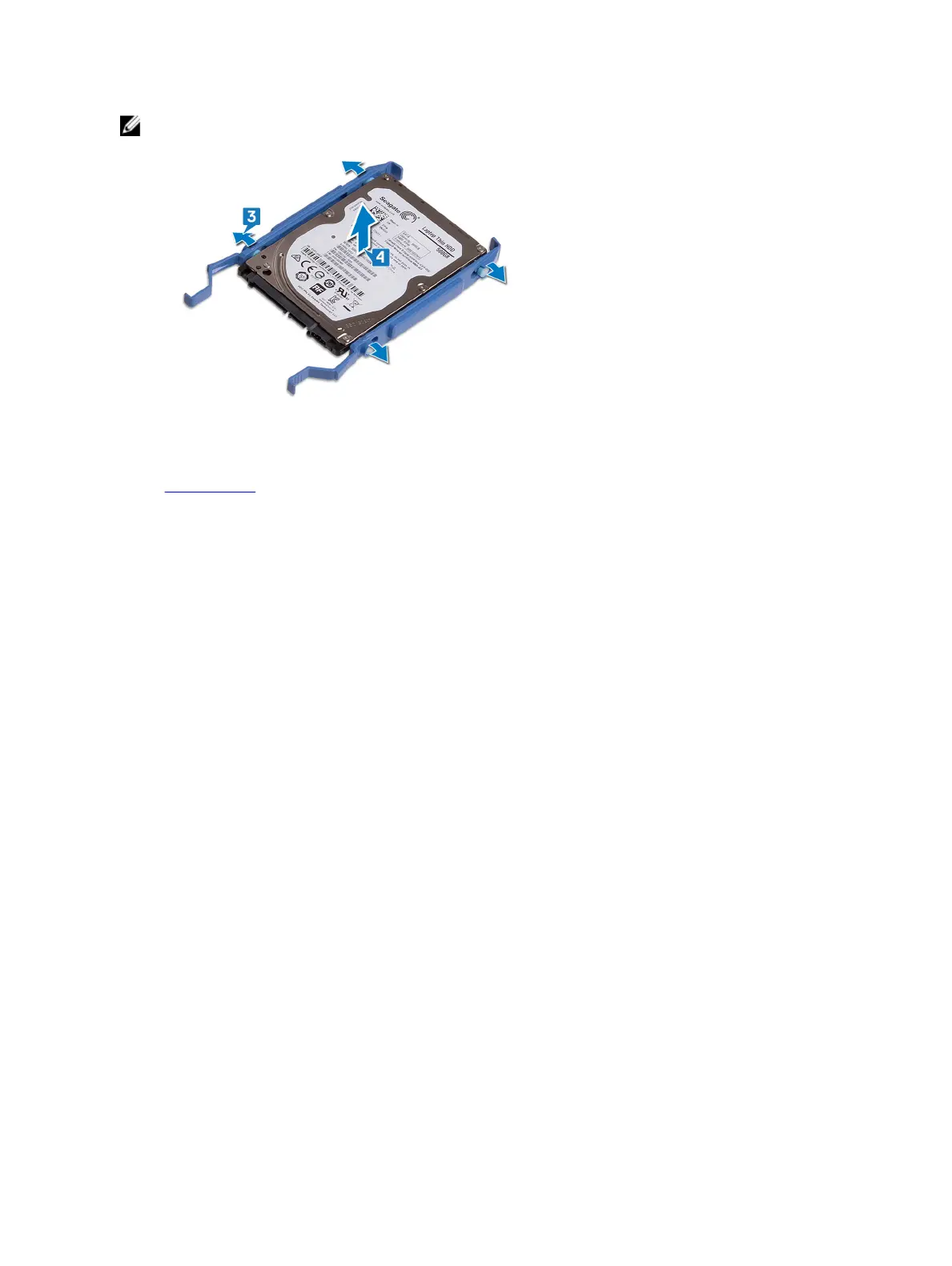

4 Lift the hard drive o the hard-drive carrier.

NOTE: Note the orientation of the hard drive so that you can replace it correctly.

Prerequisites

Remove the left-side cover.
