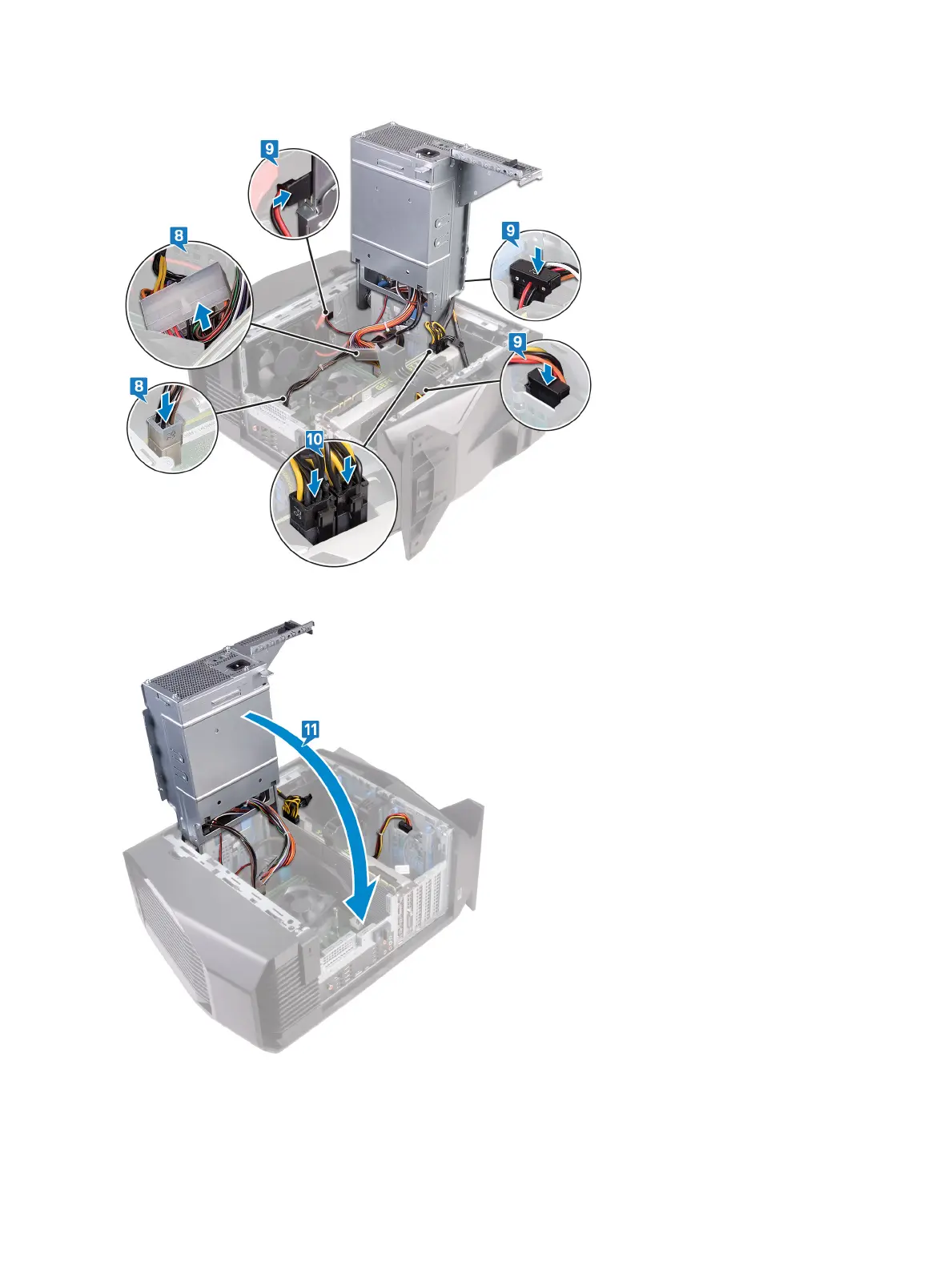

10 Connect the power cables to the graphics card.

11 Rotate the power-supply unit cage towards the chassis until the unit snaps into place.
