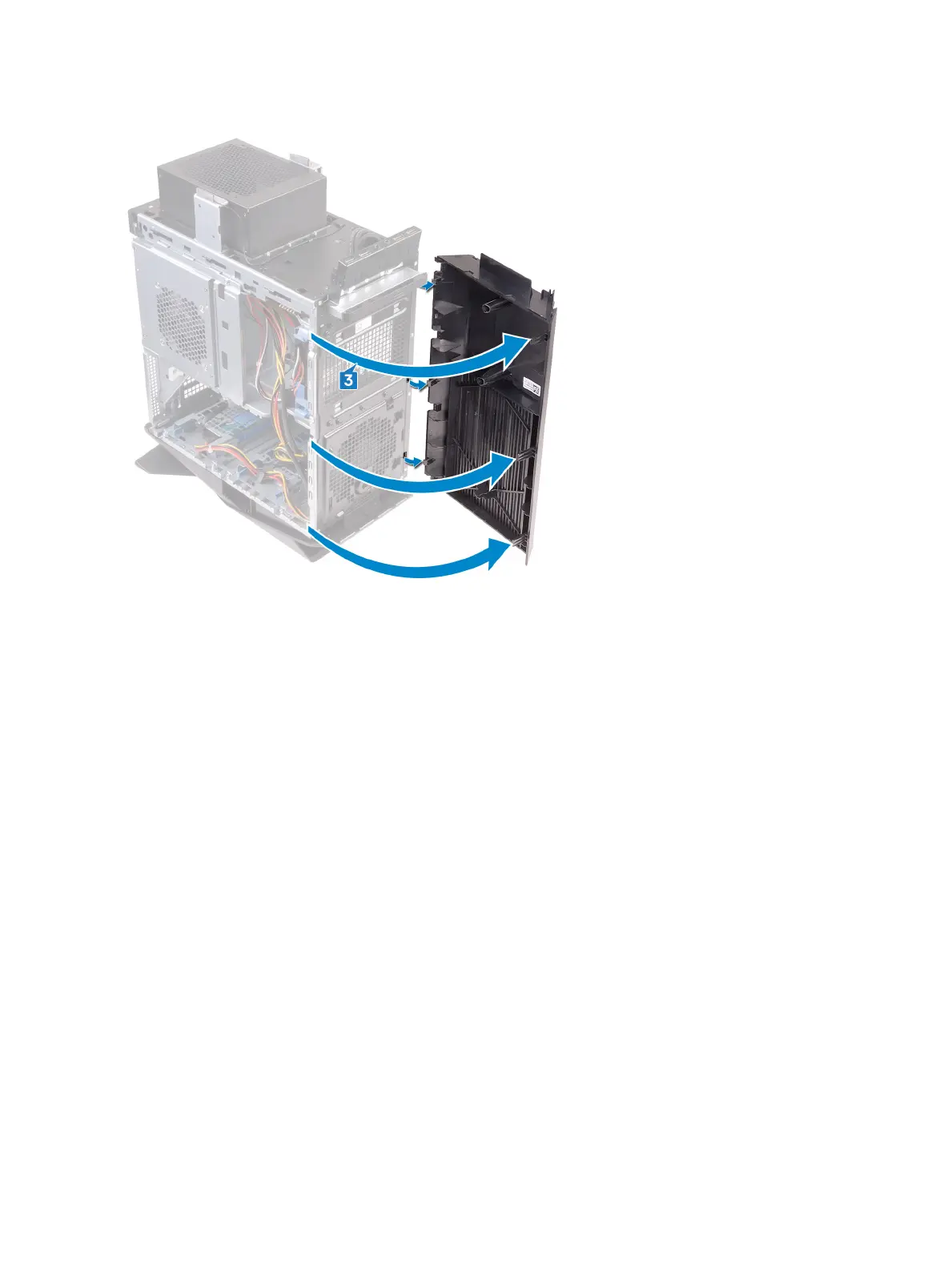

3 Rotate and pull the front bezel away from the front of the chassis to release the tabs on the front bezel from the slots on

the front panel.
