Connecting 5.1 speakers

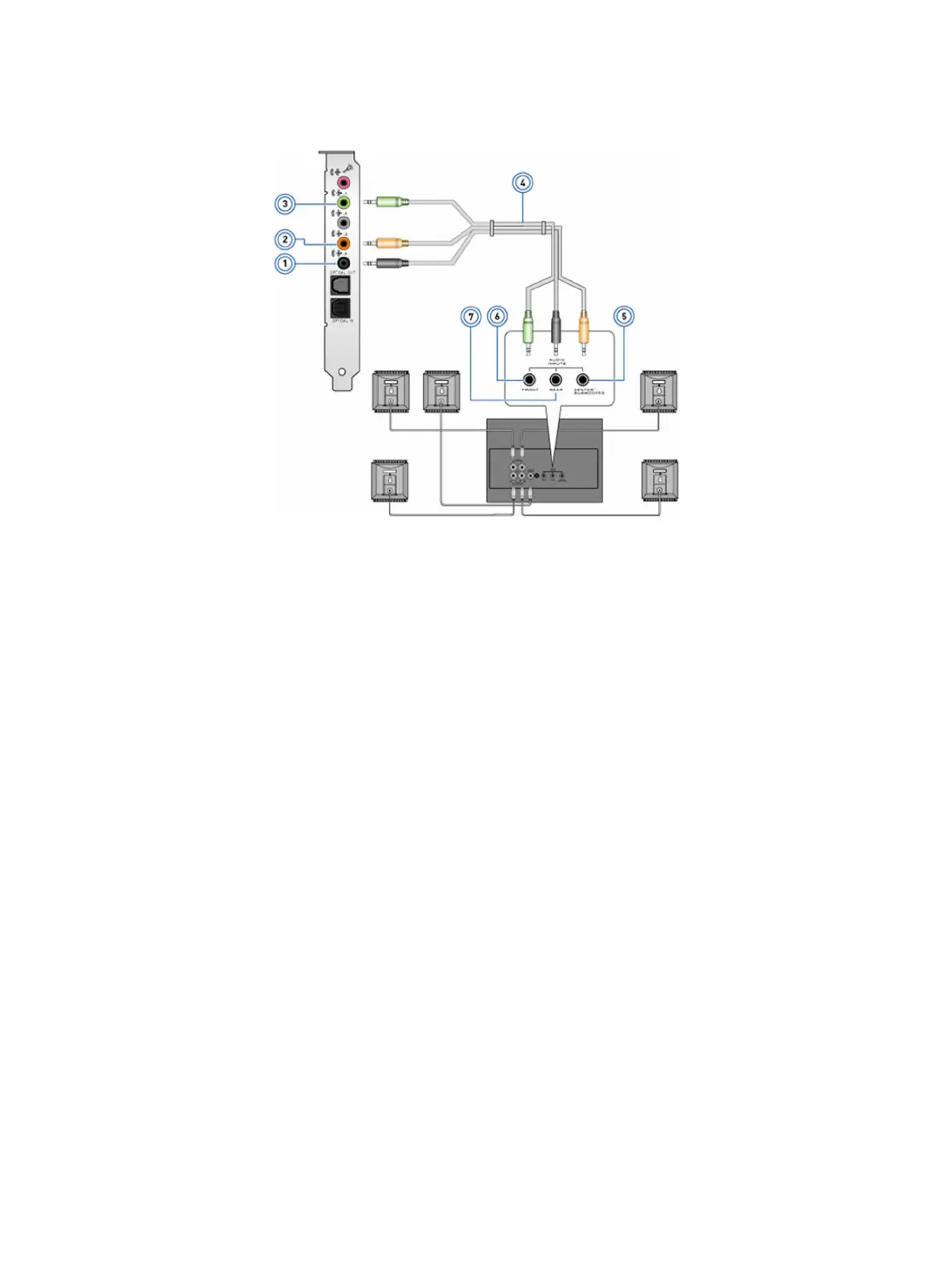

Figure 1. Connecting 5.1 speakers
1
Rear audio connector on the computer 2 Center/LFE surround out on the computer
3 Front audio connector on the computer 4 5.1 channel audio cable
5 Center/LFE surround out on the speaker 6 Front audio connector on the speaker
7 Rear audio connector on the speaker
10 Setting up your computer
