About this task
Steps

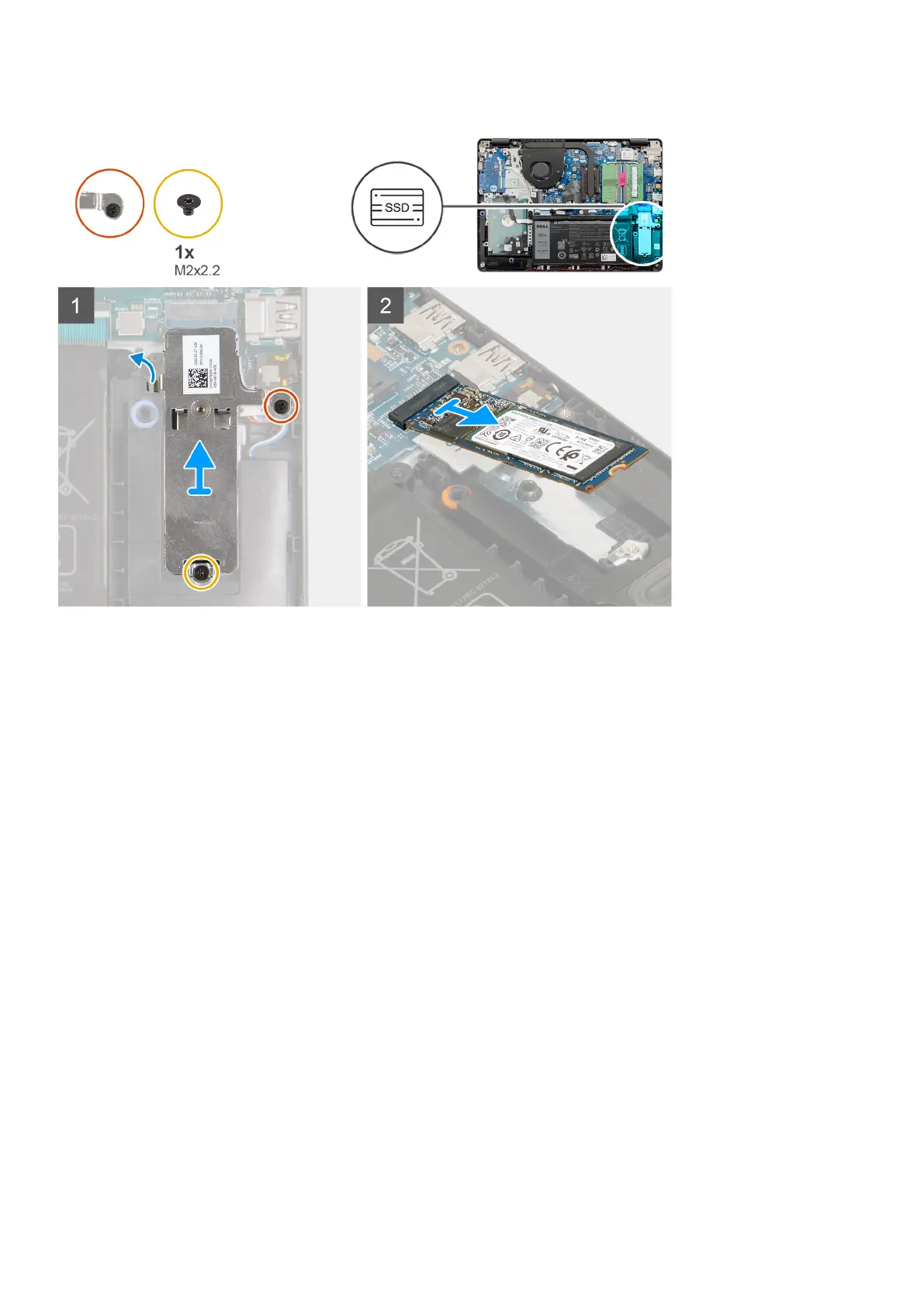

1. Remove the two (M2x2.2) screw from the thermal bracket and lift the bracket out of the system.
2. Lift the solid-state drive from the M.2 slot on the system board and remove it from the system.
Installing the M.2 2280 Solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
36
Disassembly and reassembly
