About this task
Steps

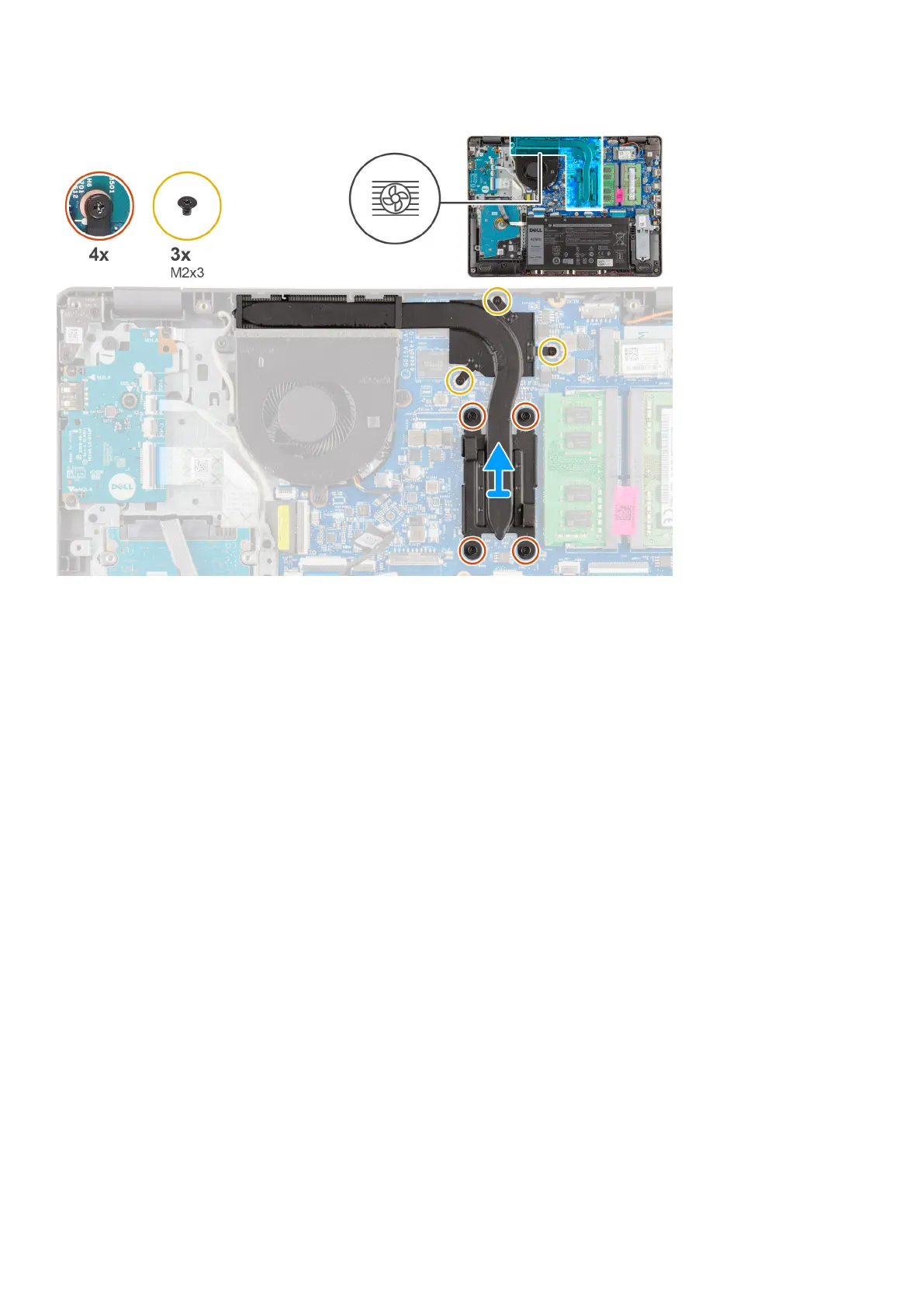

1. Loosen the four captive screws and remove the three (M2x3) screws that secure the heatsink to the system board.
2. Lift the heatsink off the system board.
Installing the Heatsink - Discrete
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
46
Disassembly and reassembly
