Steps
1. Align and place the system board on the palmrest.
2. Peel back the Mylar tape from over the screw hole.

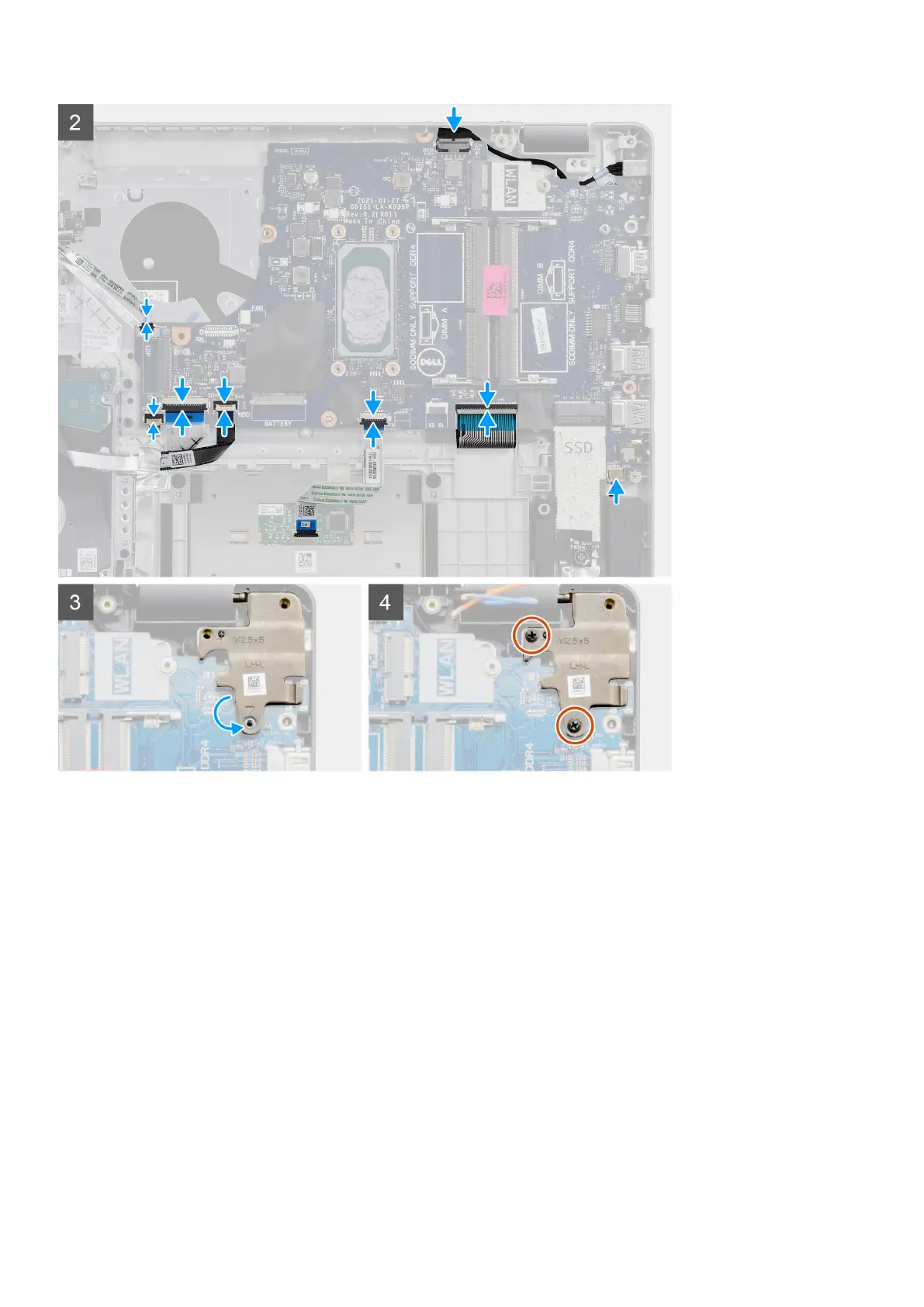

3. Replace the two (M2x4) screws that secures the system board to the palmrest.
4. Connect the following cables to the system board:
a. Speaker cable
b. Keyboard FFC
c. Keyboard backlight FFC
d. Touchpad FFC
e. Hard drive FFC
f. IO board FFC
g. Power adapter port cable
h. Fingerprint reader FFC
i. Power button FFC from the system board
5. Fold back the right hinge and install the two (M2.5x5) screws to secure it to the palmrest.
Next steps
1. Install the display assembly.
2. Install the heatsink.
Disassembly and reassembly
