38 Basic Operation
www.dell.com | support.dell.com

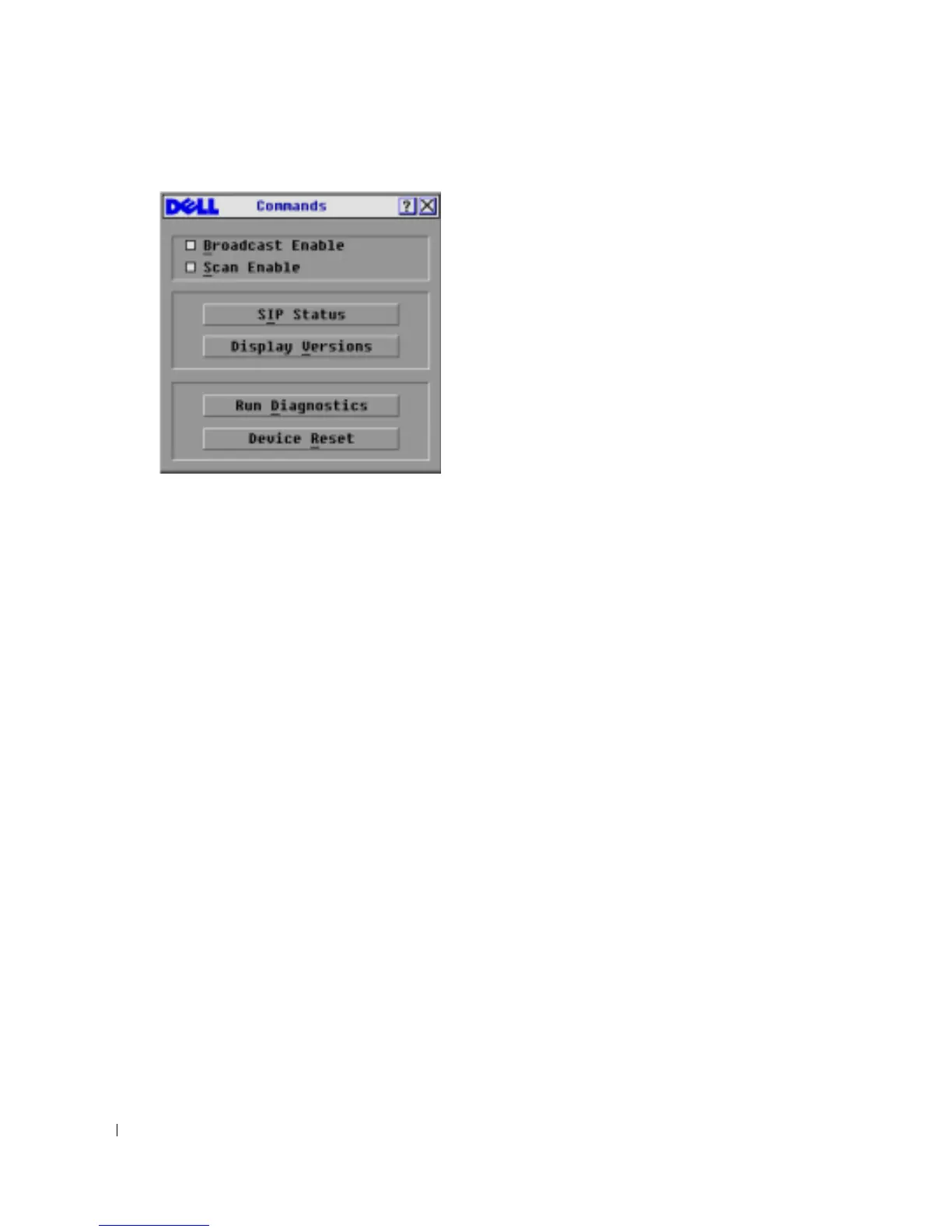

Figure 3-15. Commands Dialog Box
Scanning Your System
In scan mode, the appliance automatically scans from port to port (server to server). You can scan
up to 16 servers, specifying which servers to scan and the number of seconds that each server will
display. The scanning order is determined by the order in which the servers are added to the
Scan
list. The list is always shown in scanning order. You can, however, choose to display the server’s
name or EID number by pressing the appropriate button.
To add servers to the scan list:
1
If the OSCAR interface is not open, press
<Print Screen>
. The
Main
dialog box appears.
2
Click
Setup - Scan
. The
Scan
dialog box appears.
To Next Page
