Dell Console Switch User Manual

Appendices 49
Upgrading the SIP
The Server Interface Pods (SIPs) can be upgraded individually or simultaneously.
NOTICE: Do not cycle power to the server or disconnect the SIP during this process. A loss of power
will render the SIP inoperable and require the unit be returned to the factory for repair.
To simultaneously upgrade multiple SIPs:
1 Press <Print Screen>. The Main dialog box appears.
2 Click Commands-SIP Status . The SIP Status dialog box appears.

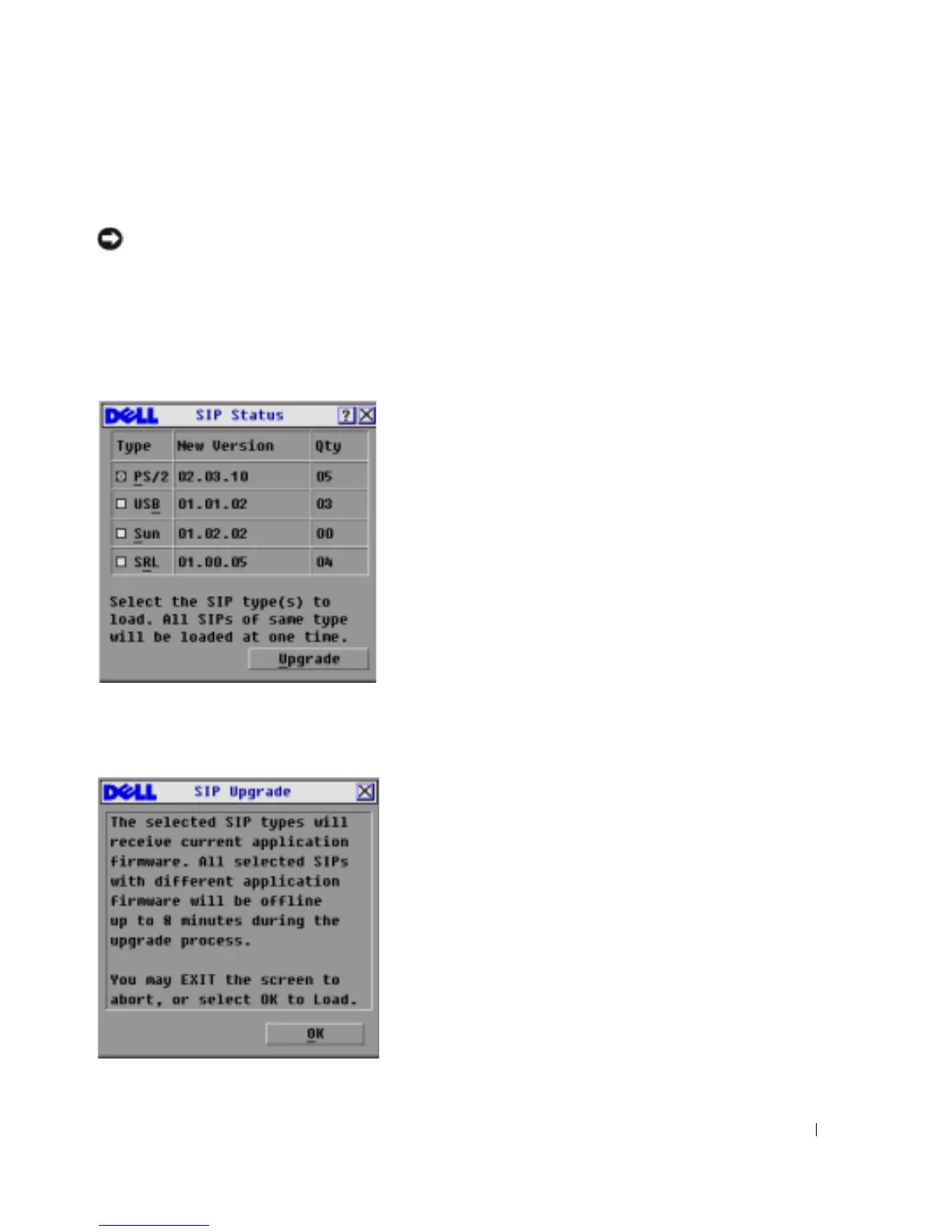

Figure 4-1. SIP Status Dialog Box.
3
Click one or more types of SIPs you wish to upgrade. Click Upgrade . The SIP Upgrade dialog
box appears.
Figure 4-2. SIP Upgrade Dialog Box
4
Click OK to initiate the upgrade and return to the SIP Status dialog box.
