Installing the GPU

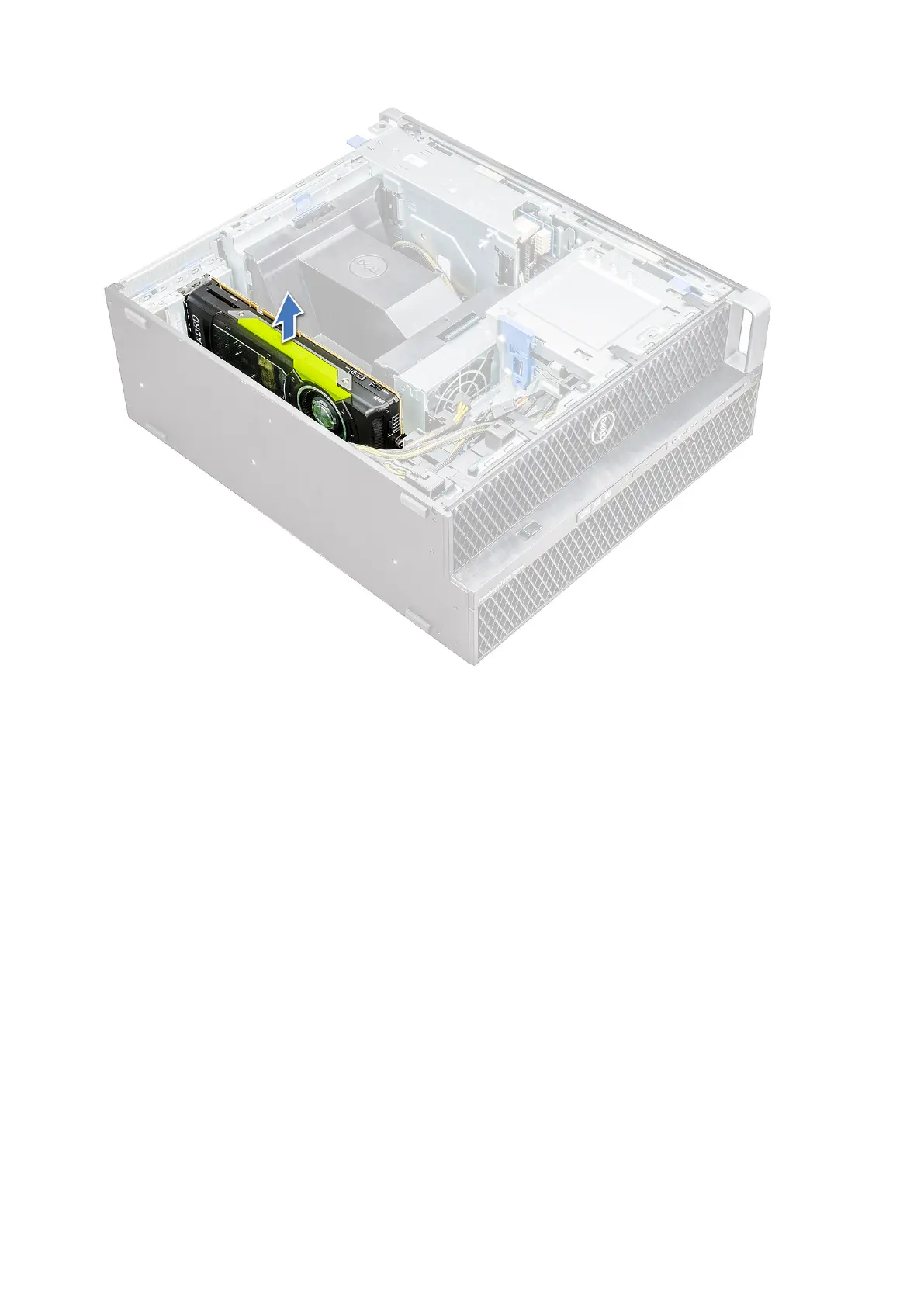

1. Align and place the GPU to the PCIe slot on the system board.
2. Press it down so that it is securely seated on the slot.
3. Connect the power cable to the GPU.
4. Lock both the blue clips forward on the filler bracket to secure the GPU to the system board.
5. Install the side cover.
6. Follow the procedure in After working inside your computer.
Coin cell battery
Removing the coin cell battery
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. side cover
b. graphical processing unit(GPU)
3. To remove the coin cell battery:
a. Press the release latch [1] away from the battery to allow the battery to pop-up from the socket [2].
