Installing the processor heat sink module
1. Place the heat sink on the CPU slot.
2. Replace the four screws in the diagonal order (1,2,3,4), to secure the heat sink to the system board.
3. Install the:
a. air shroud
b. side cover
4. Follow the procedure in After working inside your computer.
Removing the CPU
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. side cover
b. air shroud
c. processor heat sink module
3. To remove the central processing unit (CPU):
a. Hold the processor heat sink module upside down.

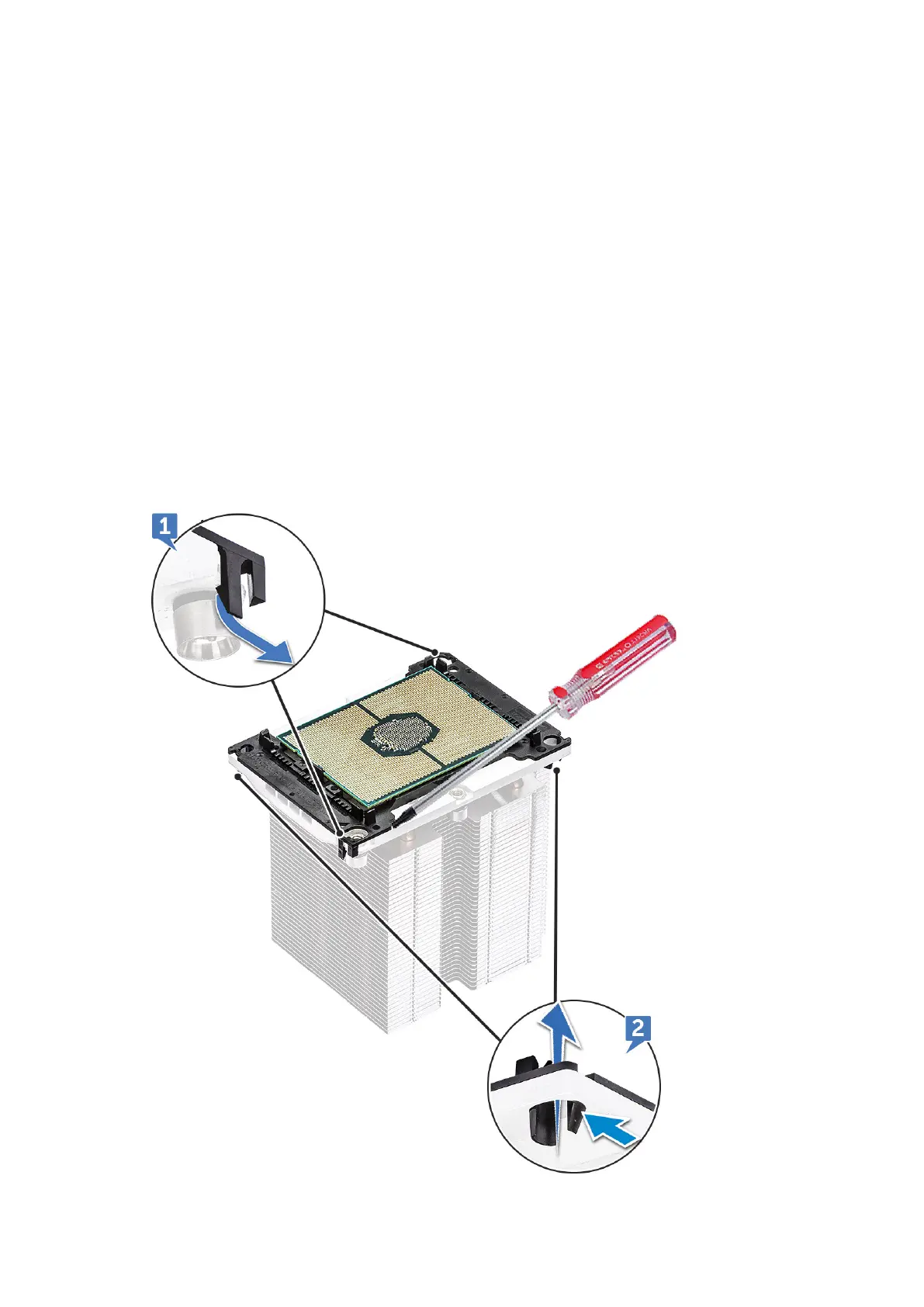

b. Pry the two processor carrier latchs [1] from the processor heat sink module.
c. Press the other two carrier latchs [2] of the processor carrier and remove it from the slot in the heat sink.
64 Removing and installing components
