1-14 Dell Dimension V
xxx
and V
xxx
c Systems Service Manual

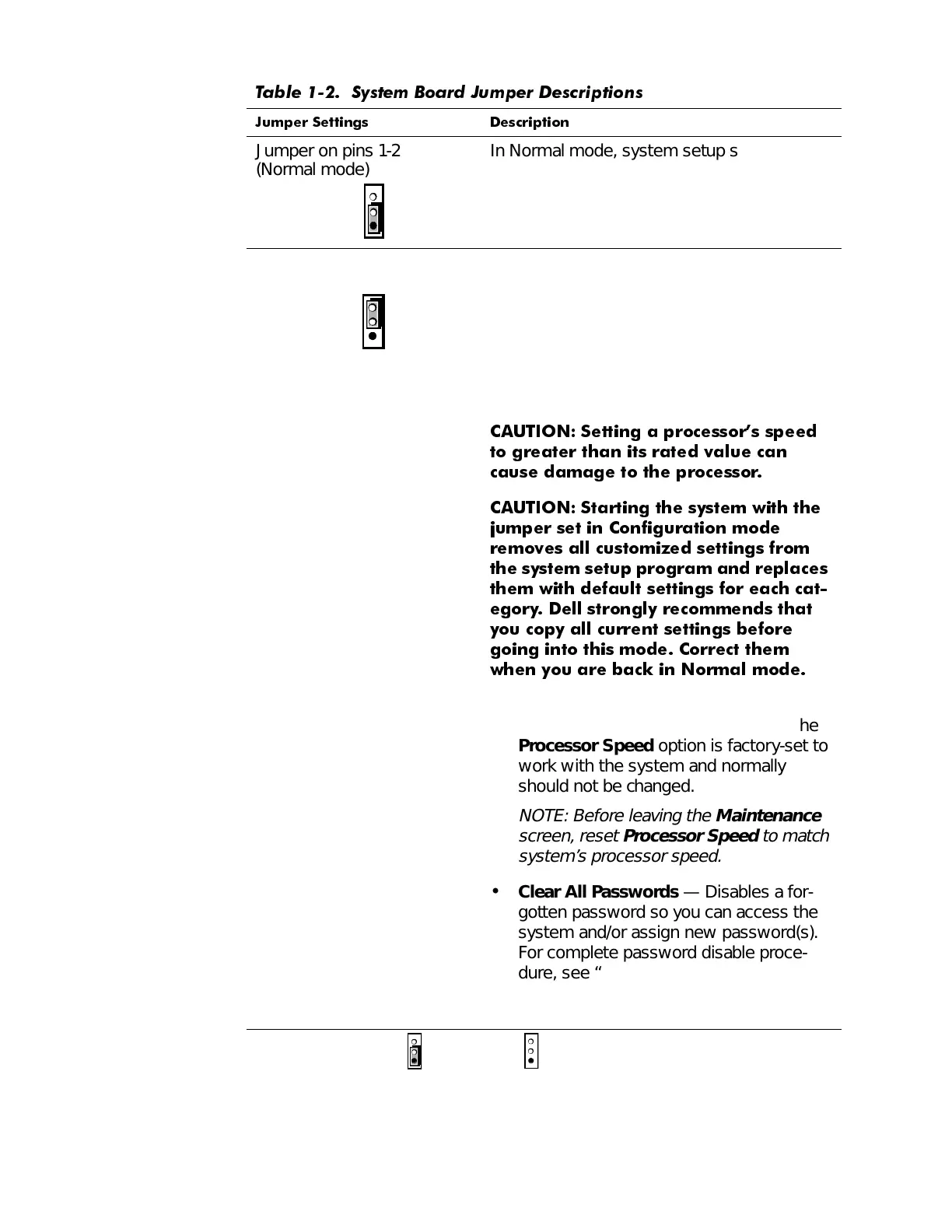

7DEOH 6\VWHP %RDUG -XPSHU 'HVFULSWLRQV
-XPSHU 6HWWLQJV 'HVFULSWLRQ
Jumper on pins 1-2
(Normal mode)
In Normal mode, system setup settings and
installed password(s) are retained when the
system starts up. Normal mode attempts
automatic recovery if BIOS detects any main
blocks corrupted.
Jumper on pins 2-3
(Configuration mode)
Starting system with jumper set in Configura-
tion mode automatically starts system setup
program, adds the
Maintenance
option to
left end of menu bar, and displays the
Main-
tenance
screen, which is accessible only in
this mode. The
Maintenance
screen pro-
vides two categories:
Processor
Speed
and
Clear
All
Passwords
.
&$87,21 6HWWLQJ D SURFHVVRU·V VSHHG
WR JUHDWHU WKDQ LWV UDWHG YDOXH FDQ
FDXVH GDPDJH WR WKH SURFHVVRU
&$87,21 6WDUWLQJ WKH V\VWHP ZLWK WKH
MXPSHU VHW LQ &RQILJXUDWLRQ PRGH
UHPRYHV DOO FXVWRPL]HG VHWWLQJV IURP
WKH V\VWHP VHWXS SURJUDP DQG UHSODFHV
WKHP ZLWK GHIDXOW VHWWLQJV IRU HDFK FDW
HJRU\ 'HOO VWURQJO\ UHFRPPHQGV WKDW
\RX FRS\ DOO FXUUHQW VHWWLQJV EHIRUH
JRLQJ LQWR WKLV PRGH &RUUHFW WKHP
ZKHQ \RX DUH EDFN LQ 1RUPDO PRGH
Processor
Speed
—
Options are
333
MHz
,
350
MHz
, and
400
MHz
. The
Processor
Speed
option is factory-set to
work with the system and normally
should not be changed.
NOTE: Before leaving the
Maintenance
screen, reset
Processor
Speed
to match
system’s processor speed.
Clear All Passwords
— Disables a for-
gotten password so you can access the
system and/or assign new password(s).
For complete password disable proce-
dure, see “Disabling a Forgotten
Password” in Appendix B of the
Refer-
ence and Troubleshooting Guide
.
•
indicates pin 1
jumpered unjumpered
