Dell Dimension V350 - Control Panel Board

Removing and Replacing Parts 4-19
&RQWURO3DQHO%RDUG

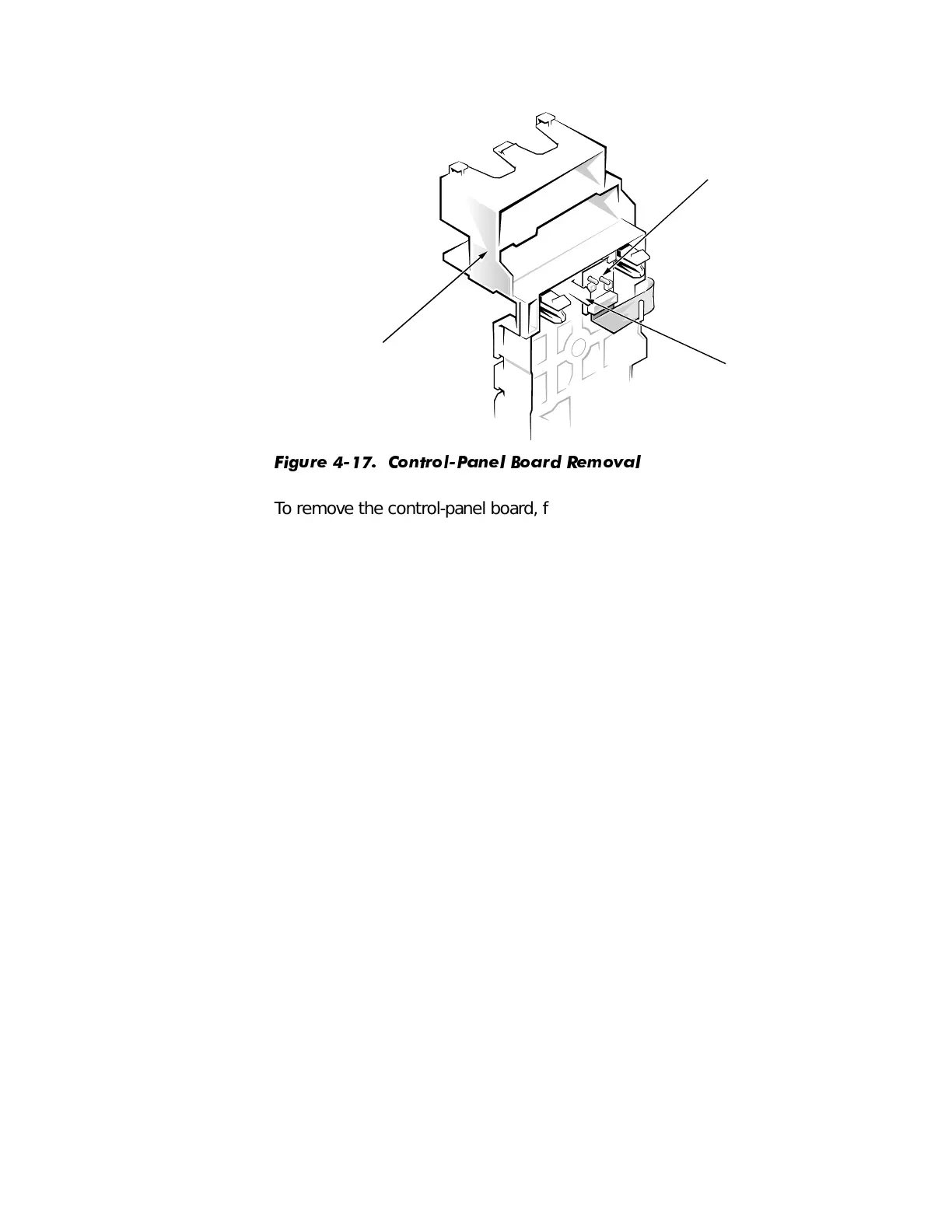

)LJXUH  &RQWURO3DQHO %RDUG 5HPRY DO
To remove the control-panel board, follow these steps:
1. Remove the front bezel.
2. Remove the card guide assembly.
3. Press the mounting tab to release the control panel board from the card
guide assembly (see Figure 4-17), and remove the control panel board.
card guide
assembly
control panel board
mounting tab
