4-28 Dell Dimension V
xxx
and V
xxx
c Systems Service Manual

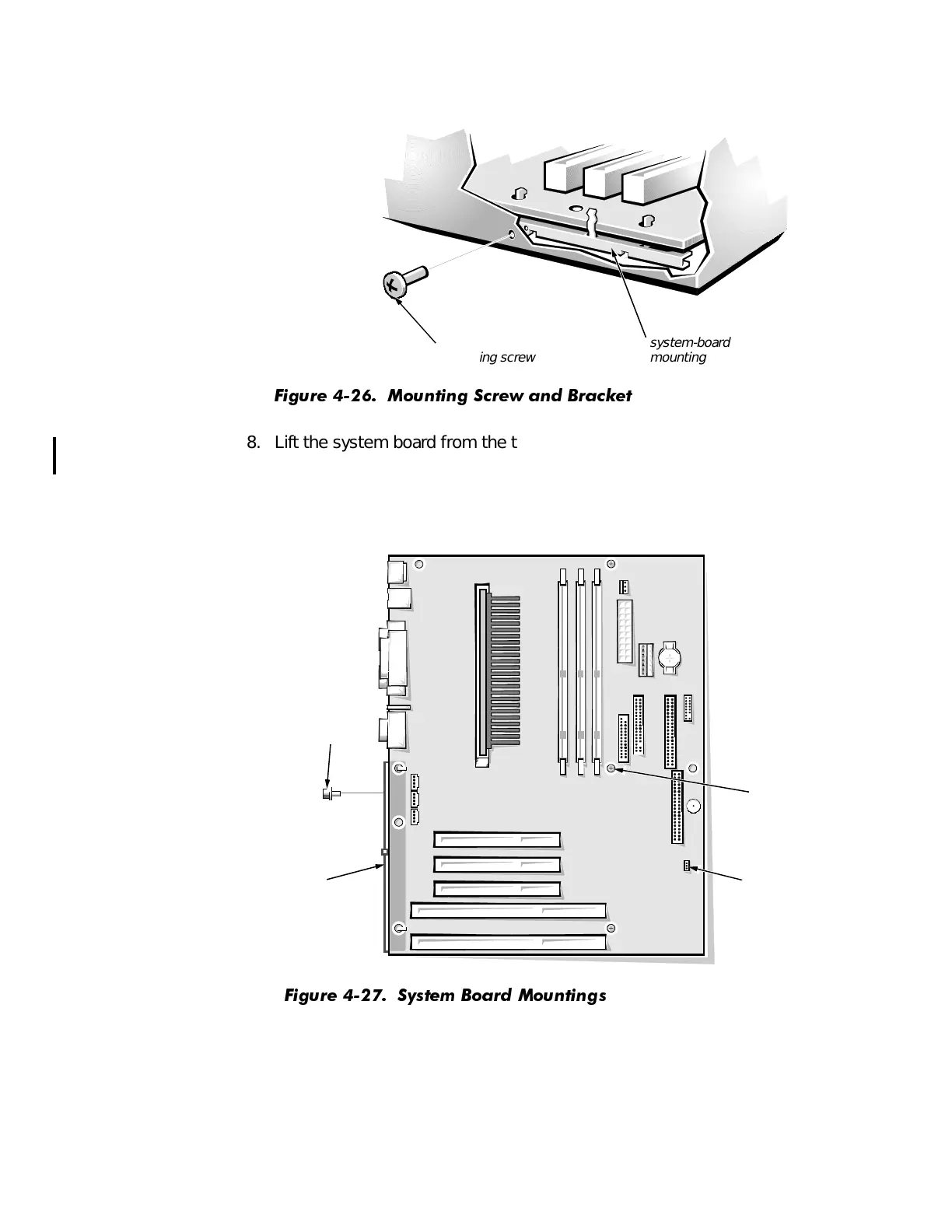

7. Remove the system-board mounting screw from the back of the computer
(see Figure 4-26).
)LJXUH 0RXQWLQJ 6FUHZ DQG %UDFNHW
8. Lift the system board from the three plastic standoffs that secure the sys-
tem board to the chassis (see Figure 4-27).
9. Carefully lift the system board away from the I/O gasket (see Figure4-24), and
remove the board from the computer.
)LJXUH 6\VWHP %RDUG 0RXQWLQJV
back of
computer
system-board
mounting screw
system-board
mounting bracket
system-board
mounting
screw
configuration
jumper J9D3
system-board
mounting
bracket
screws (3)
