SCv2080 Storage System Back-Panel Features and
Indicators
The back panel shows power, connectivity, and fault indicators.

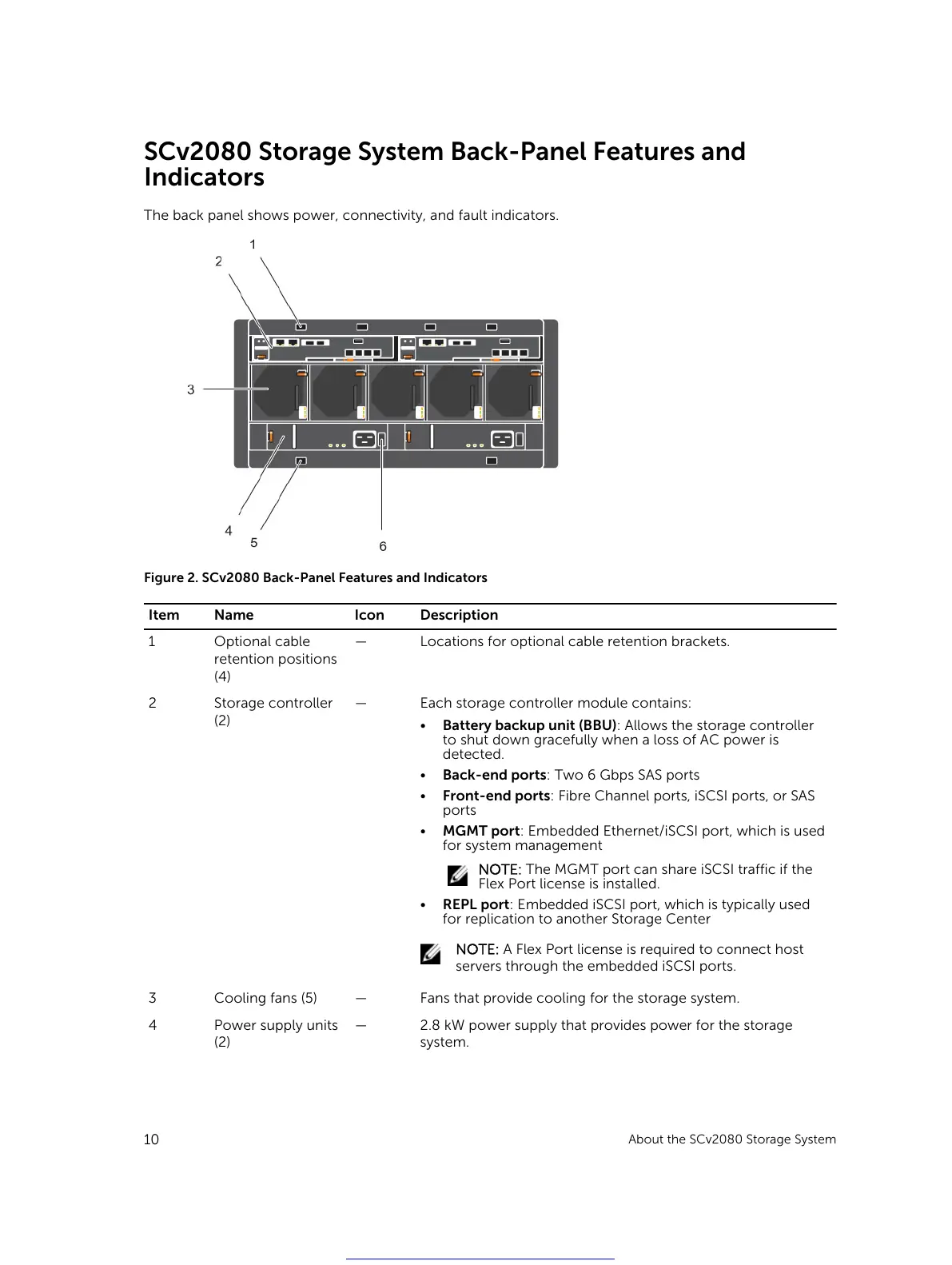

Figure 2. SCv2080 Back-Panel Features and Indicators
Item Name Icon Description
1 Optional cable
retention positions
(4)
— Locations for optional cable retention brackets.
2 Storage controller
(2)
— Each storage controller module contains:
• Battery backup unit (BBU): Allows the storage controller
to shut down gracefully when a loss of AC power is
detected.
• Back-end ports: Two 6 Gbps SAS ports
• Front-end ports: Fibre Channel ports, iSCSI ports, or SAS
ports
• MGMT port: Embedded Ethernet/iSCSI port, which is used
for system management
NOTE: The MGMT port can share iSCSI traffic if the
Flex Port license is installed.
• REPL port: Embedded iSCSI port, which is typically used
for replication to another Storage Center
NOTE: A Flex Port license is required to connect host
servers through the embedded iSCSI ports.
3
Cooling fans (5) — Fans that provide cooling for the storage system.
4 Power supply units
(2)
— 2.8 kW power supply that provides power for the storage
system.
10
About the SCv2080 Storage System
