4. Connect the power and data cable to the hard drive.
l
If connecting to the integrated SATA controller (SATA hard drives only), connect the
SATA data cable to the SATA_A-D connector on the system board.
l
If connecting to a SAS RAID controller card (SAS or SATA hard drives), connect the data
cable to the connector on the card.

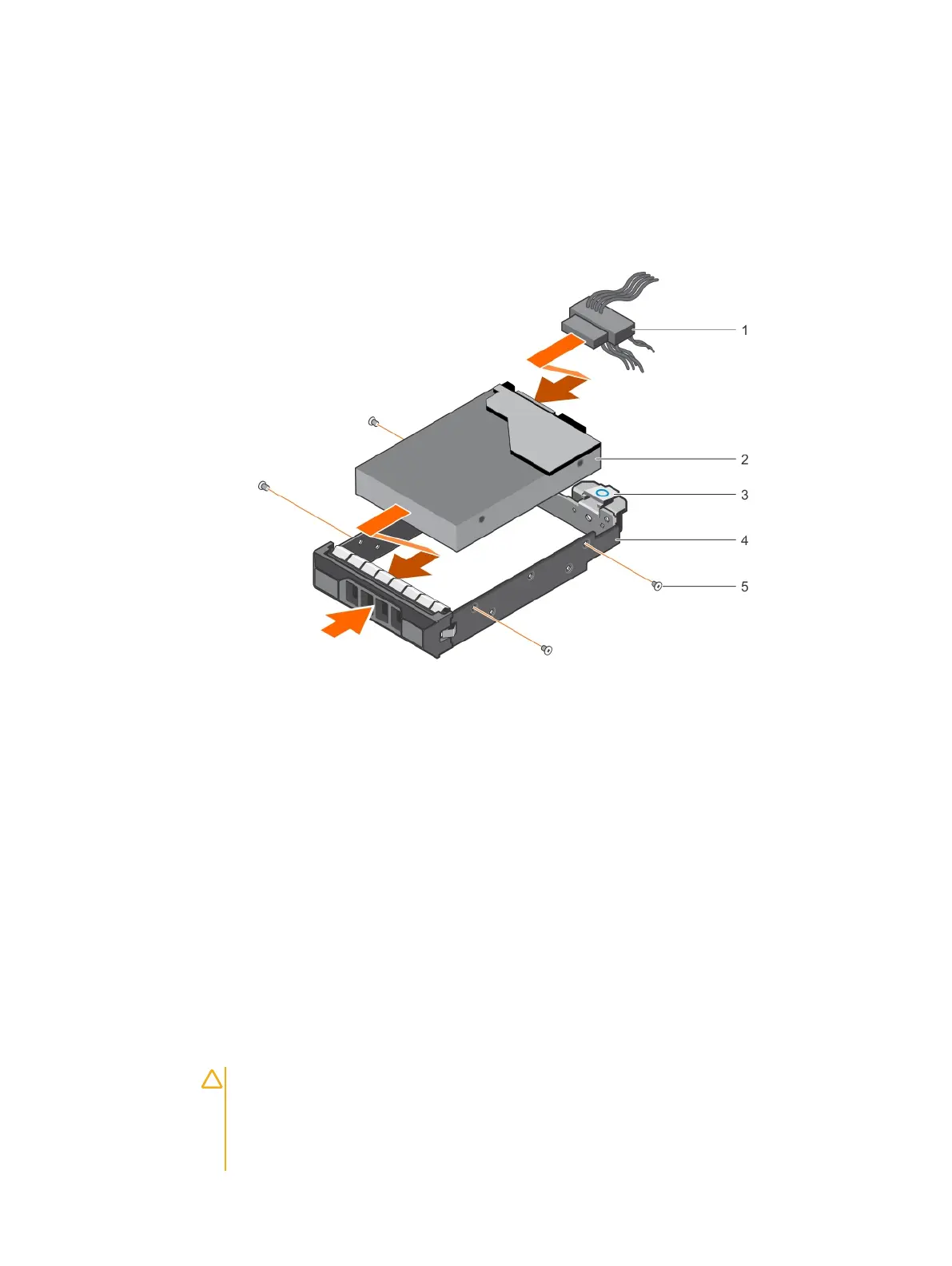

Figure 33 Installing a cabled hard drive carrier
a. power/data cable
b. hard drive
c. release tab
d. hard drive carrier
e. screw (4)
After you finish
1. Enter System Setup and ensure that the controller of the hard drive is enabled.
2. Exit System Setup and reboot the system.
3. Install any software required for the hard drive operation as described in the documentation for
the hard drive.
4. Follow the procedure listed in the After working inside your system section.
Removing a hot swappable hard drive carrier
Before you begin
CAUTION
Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
Installing and removing system components
110 Dell PowerEdge R430 Owner's Manual
