Dell E28S Series

System board connectors

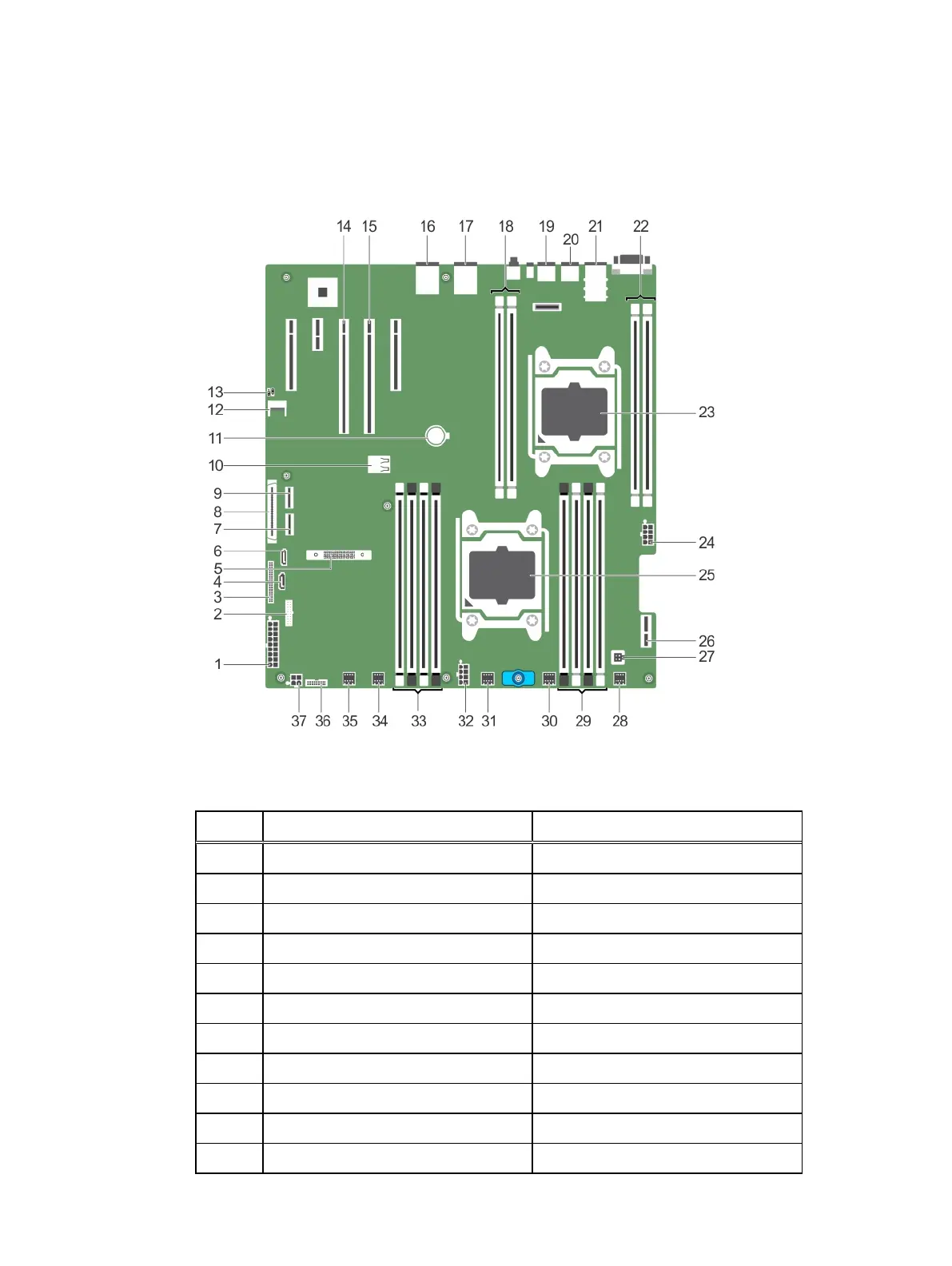

Figure 104 System board jumpers and connectors
System board jumpers and connectors
Table 44
System board jumpers and connectors
Item Connector Description
1 SYS_PWR_CONN (P1) 24-pin power connector
2 FB_USB Front-panel USB connector
3 PIB_CONN Power interposer board connector
4 SATA_CDROM SATA connector CDROM
5 MiniPERC PCIE_G3_X8 (CPU1) Mini PERC card connector
6 SATA_TBU SATA connector tape backup unit
7 SW_RAID_B Software RAID connector B
8 CTRL_PNL Control panel interface connector
9 SW_RAID_A Software RAID connector A
10 INT_USB_3.0 Internal USB connector
11 BATTERY Battery connector
Jumpers and connectors
Dell PowerEdge R430 Owner's Manual 197
