2. Follow the procedure listed in the Before working inside your system section.
3. Install the expansion card into the expansion card riser.
Procedure
1. Align the following:
a. guide on the expansion-card riser with the guide pin on the system board.
b. expansion card riser latch with the slot on the chassis.
2. Lower the expansion card riser until the expansion card riser is firmly seated in the
connector on the system board.
3. Close the expansion card riser latch.

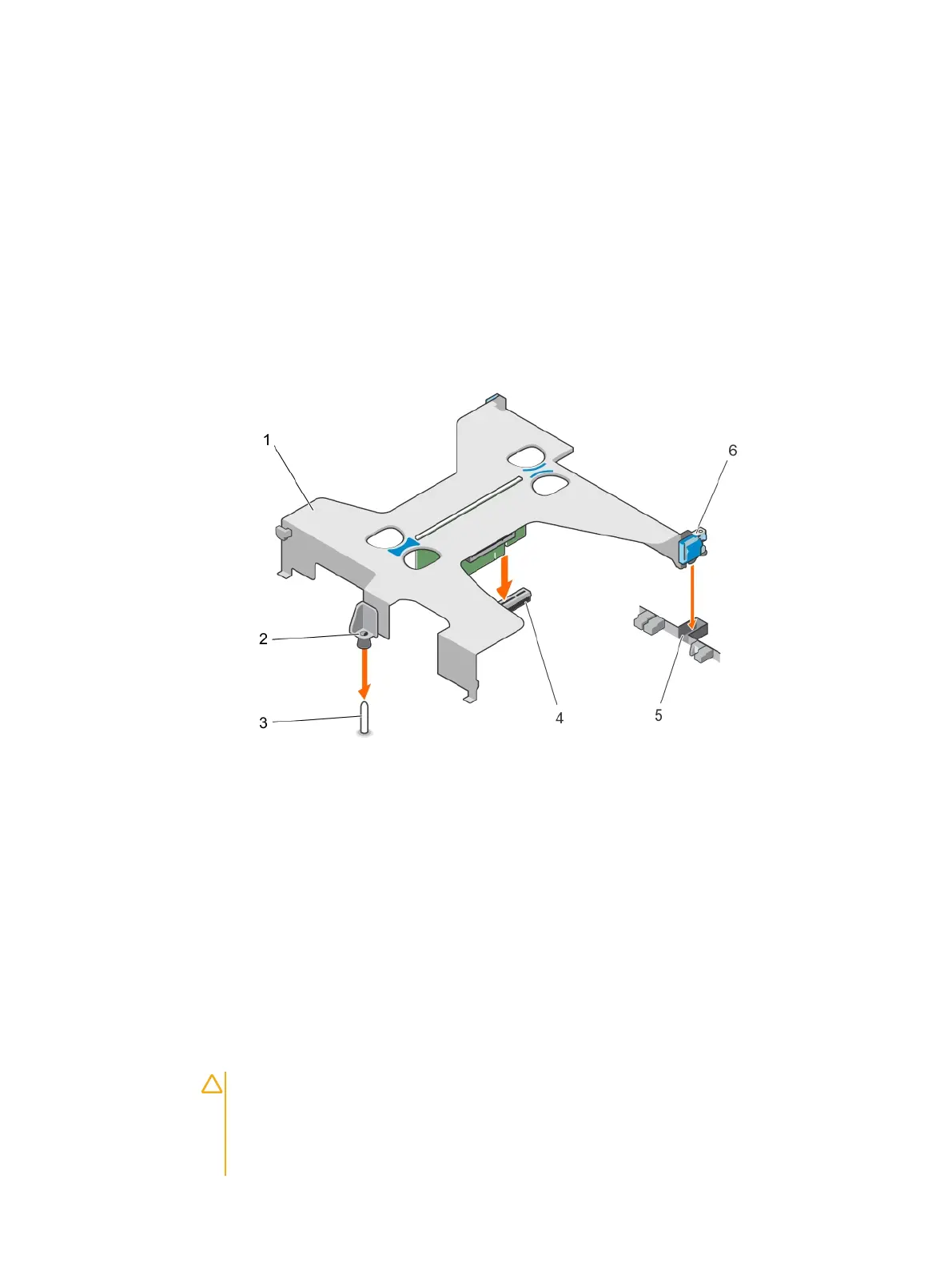

Figure 51 Installing the expansion card riser
a. expansion card riser
b. guide on the expansion card riser
c. guide pin on the system board
d. riser connector on the system board
e. slot on the chassis
f. expansion card latch
After you finish
Follow the procedure listed in the After working inside your system section.
Removing an expansion card
Before you begin
CAUTION
Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
Installing and removing system components
130 Dell PowerEdge R430 Owner's Manual
