Installing the hard drive backplane
Before you begin
CAUTION Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
CAUTION To prevent damage to the control panel flex cable, do not bend the control panel
flex cable after it is inserted into the connector.
1. Follow the safety guidelines listed in Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
Procedure
1. Align the slots on the hard drive backplane with the hooks on the chassis.
2. Press down the hard drive backplane until the release tabs snap into place.
3. Connect the SAS/SATA/SSD data, signal, and power cables to the backplane.

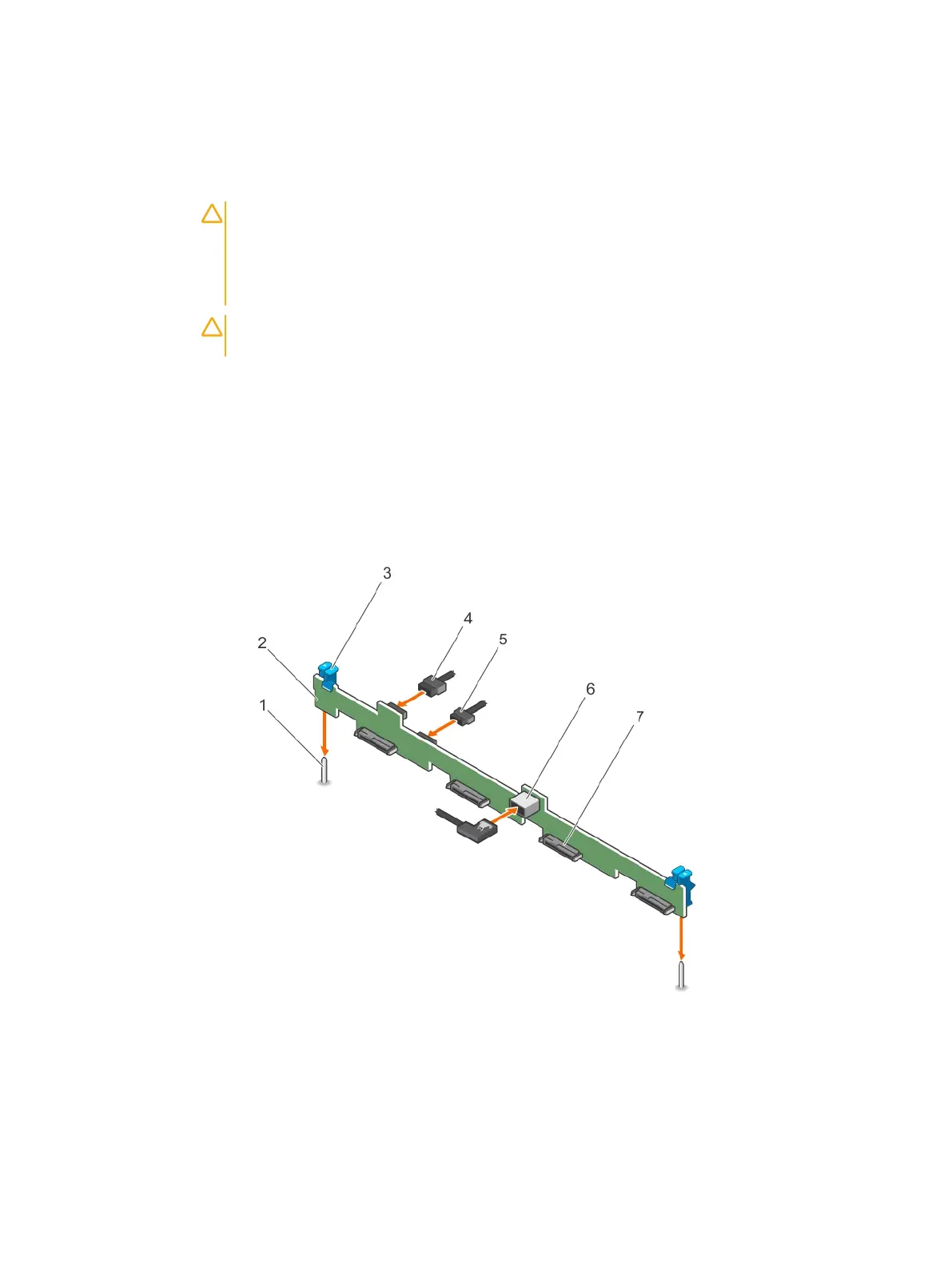

Figure 84 Installing the four 3.5 inch hard drive SAS/SATA backplane
a. guide (2)
b. hard-drive/SSD backplane
c. release tab (2)
d. backplane power cable
e. backplane signal cable
f. SAS_A connector on the backplane
Installing and removing system components
Dell PowerEdge R430 Owner's Manual 169
