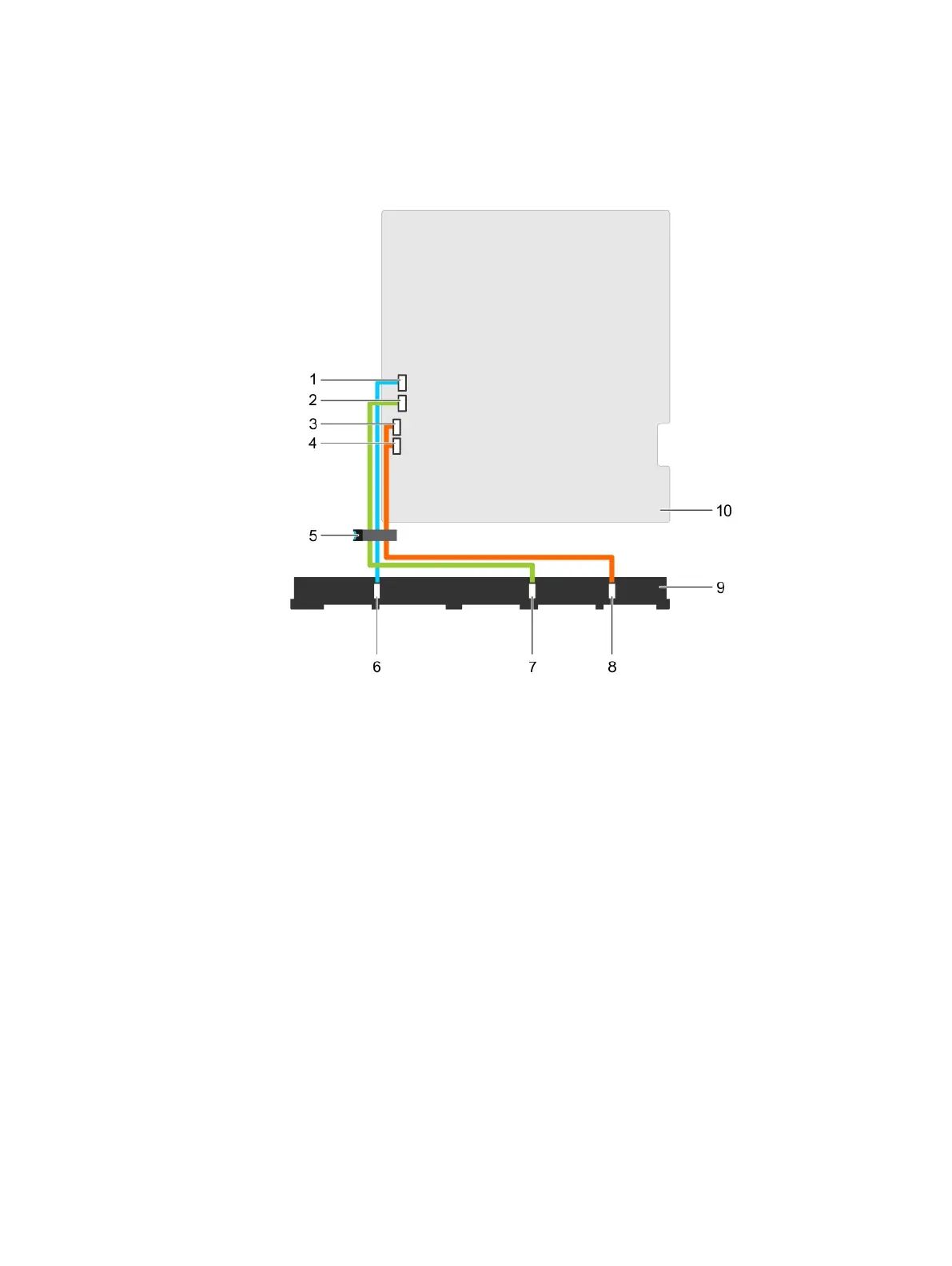

Figure 83 Cabling diagram—Ten 2.5 inch SAS/SATA backplane
a. SW_RAID_A connector on the system board
b. SW_RAID_B connector on the system board
c. SATA_hard drive8 connector on the system board
d. SATA_hard drive9 connector on the system board
e. cable routing latch
f. SAS_A connector on the backplane
g. SAS_B connector on the backplane
h. SAS_C connector on the backplane
i. hard drive/SSD backplane
j. system board
After you finish
1. Install the hard drive backplane.
2. Install all the hard drives into their original slots.
3. Follow the procedure listed in the After working inside your system section.
