Figure 84 Installing the four 3.5 inch hard drive SAS/SATA backplane (continued)
g. hard-drive/SSD connector (4)

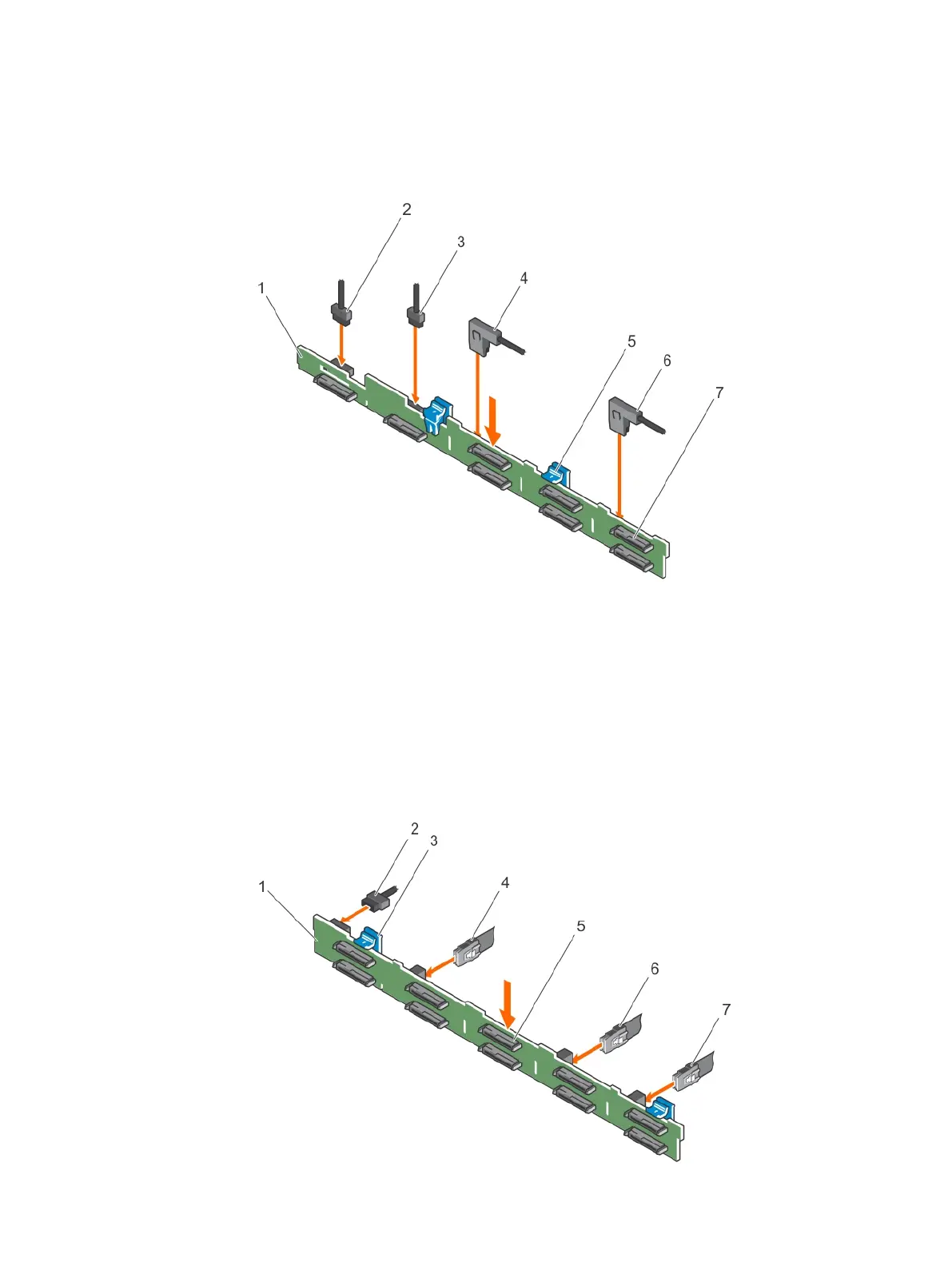

Figure 85 Installing the eight 2.5 inch SAS/SATA backplane
a. hard-drive/SSD backplane
b. backplane power cable
c. backplane signal cable
d. SAS_A cable connector
e. release tab (2)
f. SAS_B cable connector
g. hard-drive/SSD connector (8)
Figure 86 Installing the ten 2.5 inch SAS/SATA backplane
Installing and removing system components
170 Dell PowerEdge R430 Owner's Manual
