not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
CAUTION Use only hard drives that have been tested and approved for use with the hard drive
backplane.
CAUTION Combining SAS and SATA hard drives in the same RAID volume is not supported.
CAUTION When installing a hard drive, ensure that the adjacent drives are fully installed.
Inserting a hard drive carrier and attempting to lock its handle next to a partially installed
carrier can damage the partially installed carrier's shield spring and make it unusable.
CAUTION To prevent data loss, ensure that your operating system supports hot-swap drive
installation. See the documentation supplied with your operating system.
CAUTION When a replacement hot swappable hard drive is installed and the system is
powered on, the hard drive automatically begins to rebuild. Make absolutely sure that the
replacement hard drive is blank or contains data that you wish to have over-written. Any data
on the replacement hard drive is immediately lost after the hard drive is installed.
Note: Hot swappable hard drives are supplied in hot swappable hard drive carriers that fit in
the hard drive slots.
1. If installed, remove the front bezel.
2. If installed, remove the hard drive carrier blank.
3. Install a hot swappable hard drive into the hot swappable hard drive carrier.
Procedure
1. Press the release button on the front of the hot swappable hard drive carrier and open the
hot swappable hard drive carrier handle.
2. Insert the hot swappable hard drive carrier into the hard drive slot, and push the hot
swappable hard drive carrier until it comes in contact with the backplane.
3. Close the hot swappable hard drive carrier handle to lock the hot swappable hard drive
carrier in place.

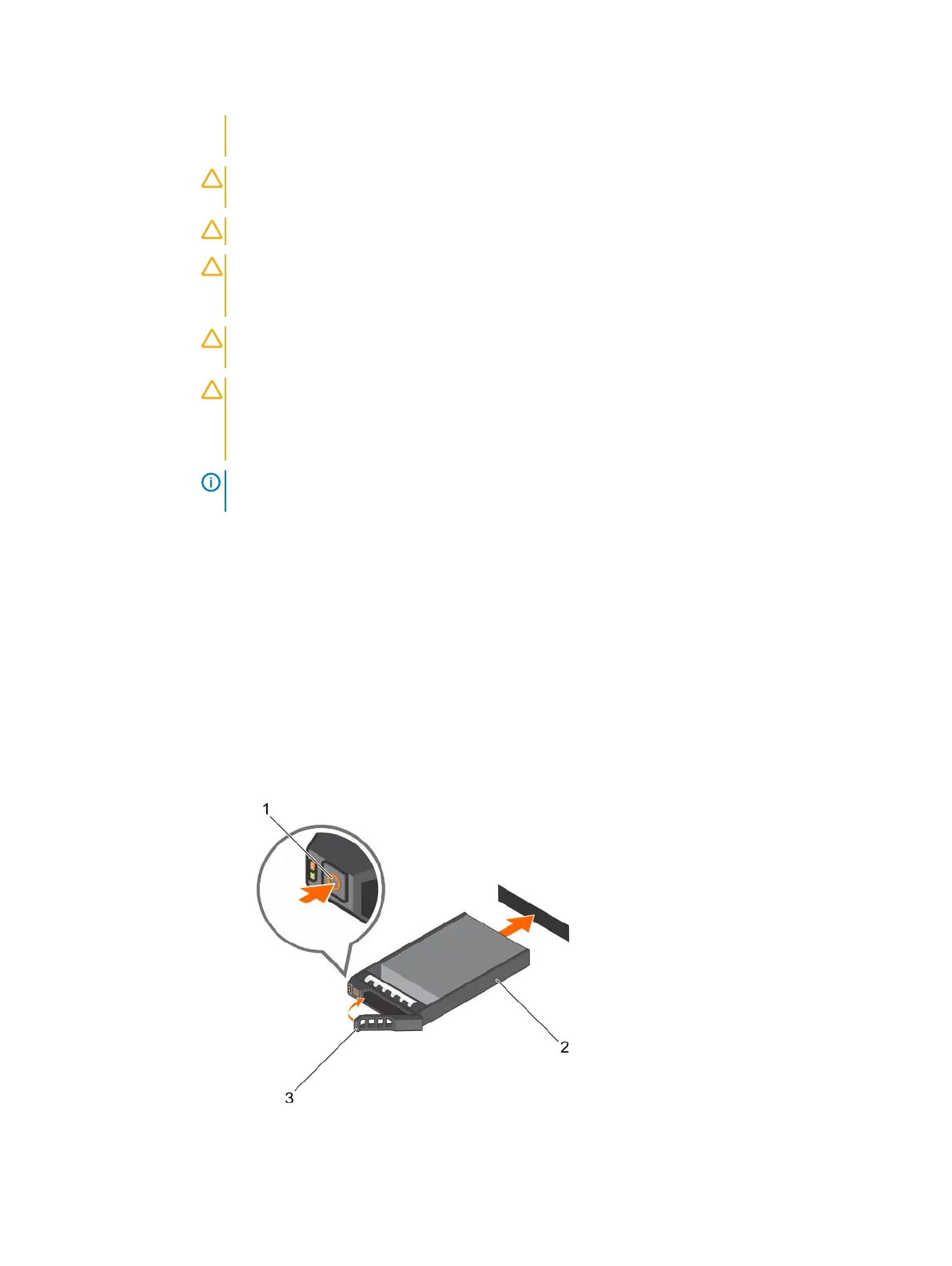

Figure 35
Installing a hot swappable hard drive carrier
a. release button
b. hard drive carrier
Installing and removing system components
112 Dell PowerEdge R430 Owner's Manual
