10. Close the processor shield.
11.
Lower the
close first
socket-release lever near the lock icon and push it under the tab to
lock it.
12.
Similarly, lower the
open first
socket-release lever near the unlock icon and push it
under the tab to lock it.

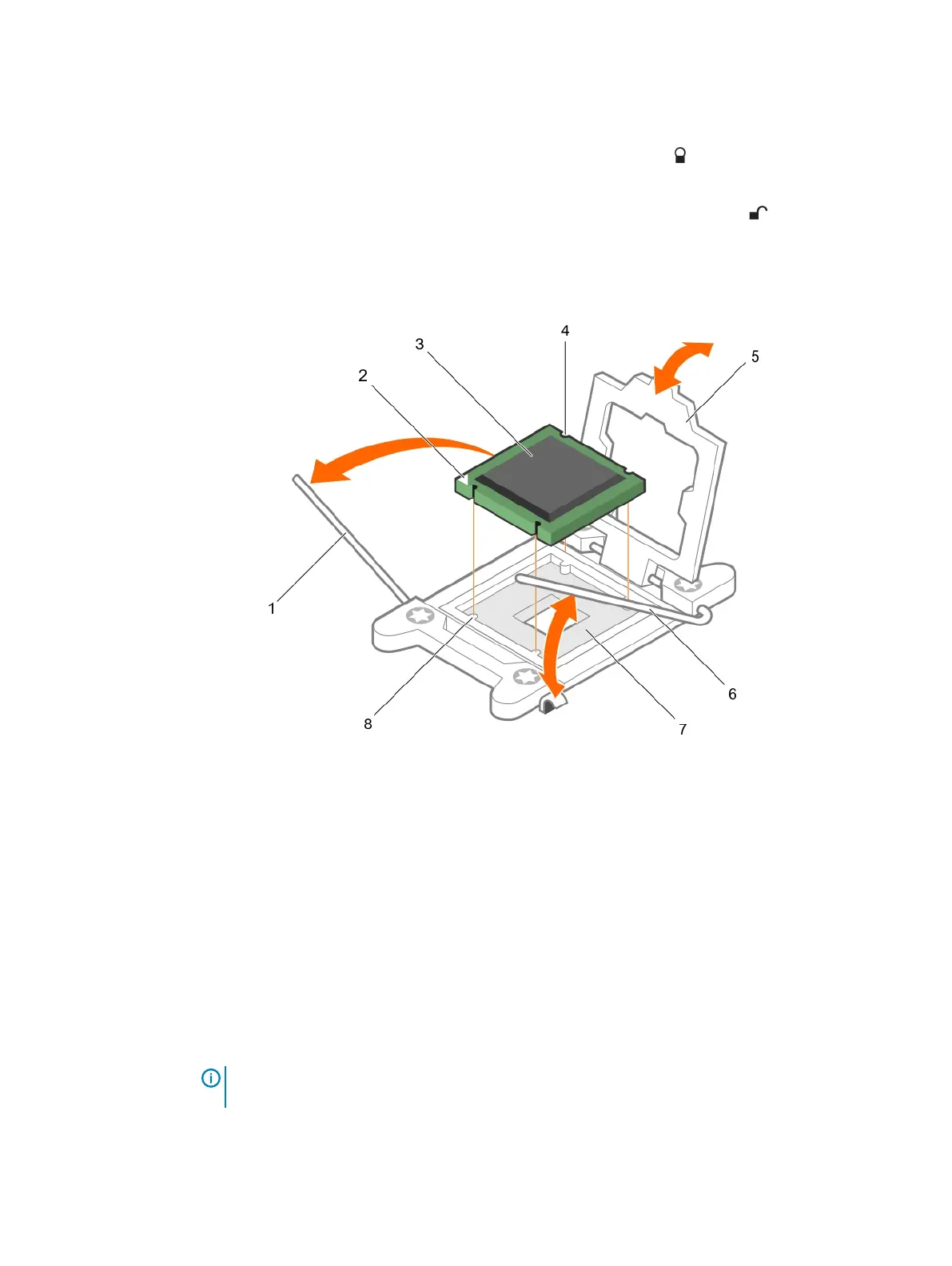

Figure 67 Installing a processor
a. socket-release lever 1
b. pin–1 corner of the processor
c. processor
d. slot (4)
e. processor shield
f. socket-release lever 2
g. processor socket
h. tab (4)
After you finish
Note:
Ensure that you install the heat sink after you install the processor. The heat sink is
necessary to maintain proper thermal conditions.
1. Install the heat sink.
2. If removed, reinstall the PCIe expansion card riser.
Installing and removing system components
150 Dell PowerEdge R430 Owner's Manual
