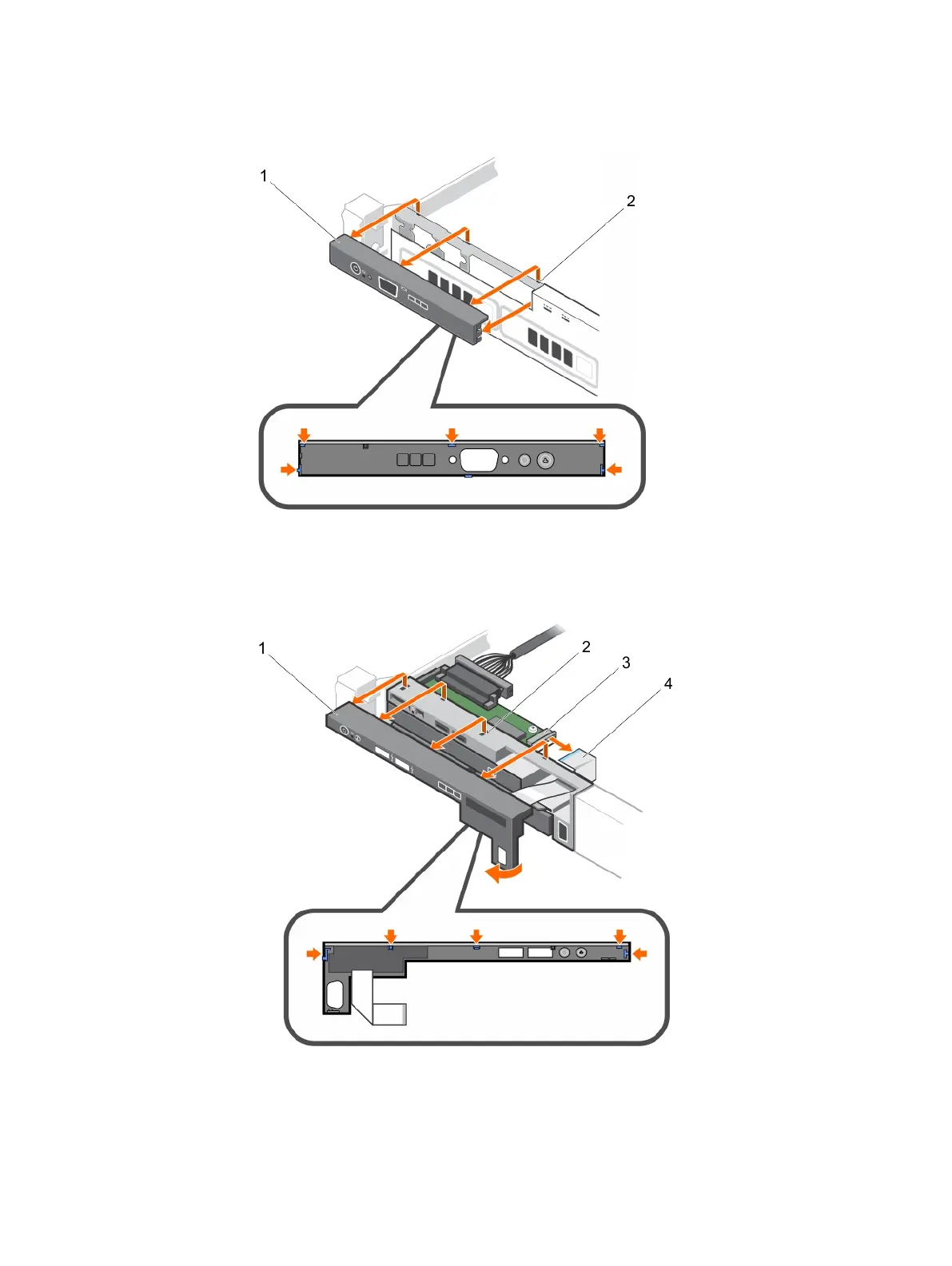

Figure 87 Removing the control panel—four 3.5-inch hard drives chassis
a. control panel
b. notches (5)
Figure 88 Removing the control panel—eight 2.5-inch hard drives/SSDs chassis
a. control panel
b. notches (5)
c. control panel module
d. LCD connector cable
Installing and removing system components
172 Dell PowerEdge R430 Owner's Manual
