Procedure
1. Align the locking tabs on the control panel with the notches on the chassis and angle the
control panel until it snaps into place.
When properly seated, the control panel will be flush with the front panel.
Note: For an eight 2.5 inch hard drive chassis, tighten the screw to secure the control
panel to the bottom of the chassis.
Note: For a ten 2.5 inch hard-drive chassis, slide the control panel into the chassis and
secure the module with the screw.

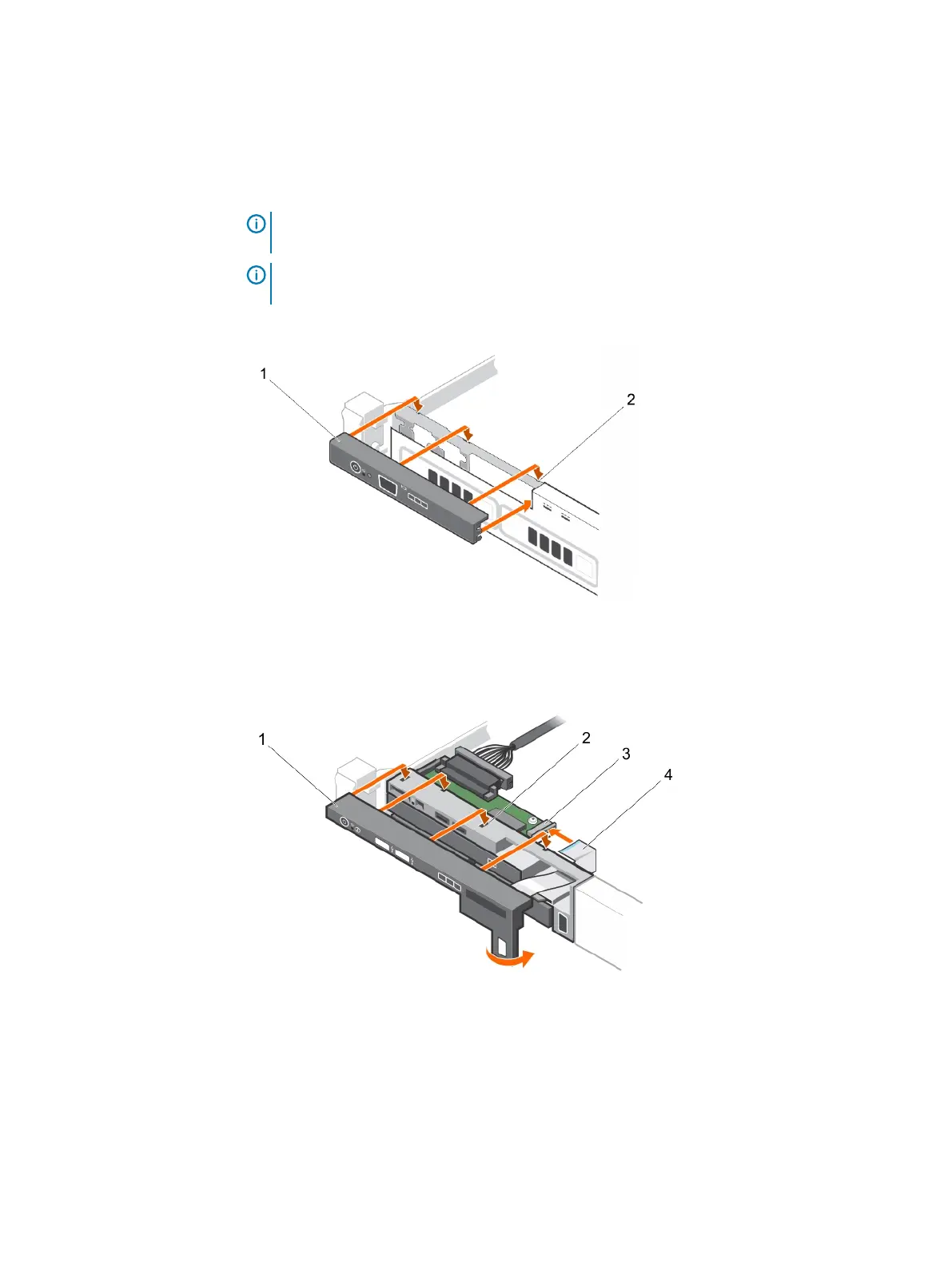

Figure 90 Installing the control panel—four 3.5 inch hard-drives chassis
a. control panel
b. notches (6)
Figure 91 Installing the control panel—eight 2.5 inch hard-drives/SSDs chassis
a. control panel
b. notches (4)
c. control panel module
d. LCD connector cable
Installing and removing system components
174 Dell PowerEdge R430 Owner's Manual
