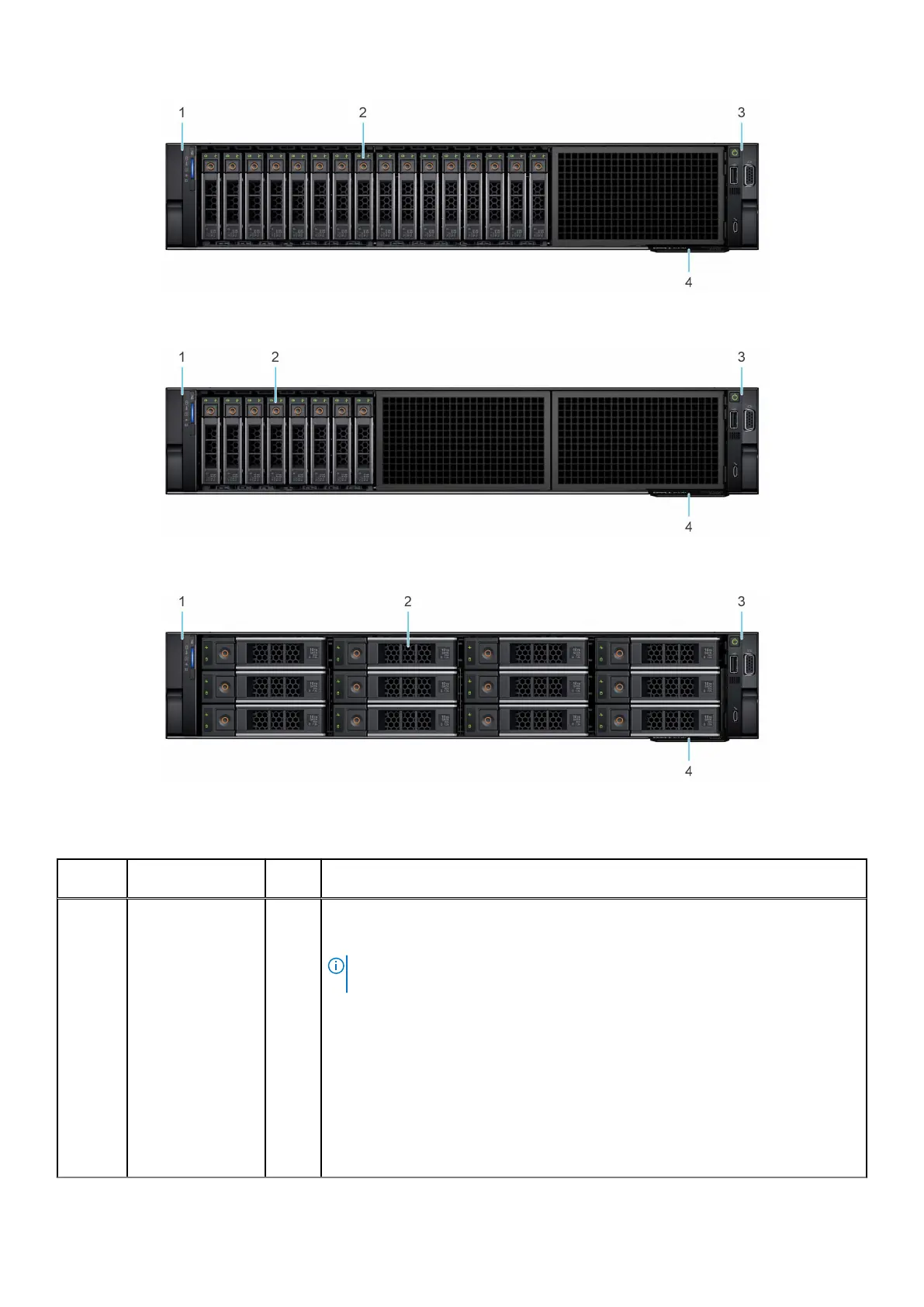

Figure 2. Front view of the 16 x 2.5-inch drive system
Figure 3. Front view of the 8 x 2.5-inch drive system
Figure 4. Front view of the 12 x 3.5-inch drive system
Table 1. Features available on the front of the system
Item Ports, panels, and
slots
Icon Description
1 Left control panel N/A
Contains the system health, system ID, status LED, and the iDRAC Quick Sync 2
(wireless) indicator.
NOTE: The iDRAC Quick Sync 2 indicator is available only on certain
configurations.
● Status LED: Enables you to identify any failed hardware components. There are
up to five status LEDs and an overall system health LED (Chassis health and
system ID) bar. For more information, see the Status LED indicators section.
● Quick Sync 2 (wireless): Indicates a Quick Sync enabled system. The Quick
Sync feature is optional. This feature allows management of the system by
using mobile devices called as OpenManage Mobile (OMM) feature. Using iDRAC
Quick Sync 2 with OpenManage Mobile (OMM) aggregates hardware or firmware
inventory and various system level diagnostic and error information that can be
used in troubleshooting the system. For more information, see the iDRAC User's
Guide available at https://www.dell.com/idracmanuals
10 System overview
