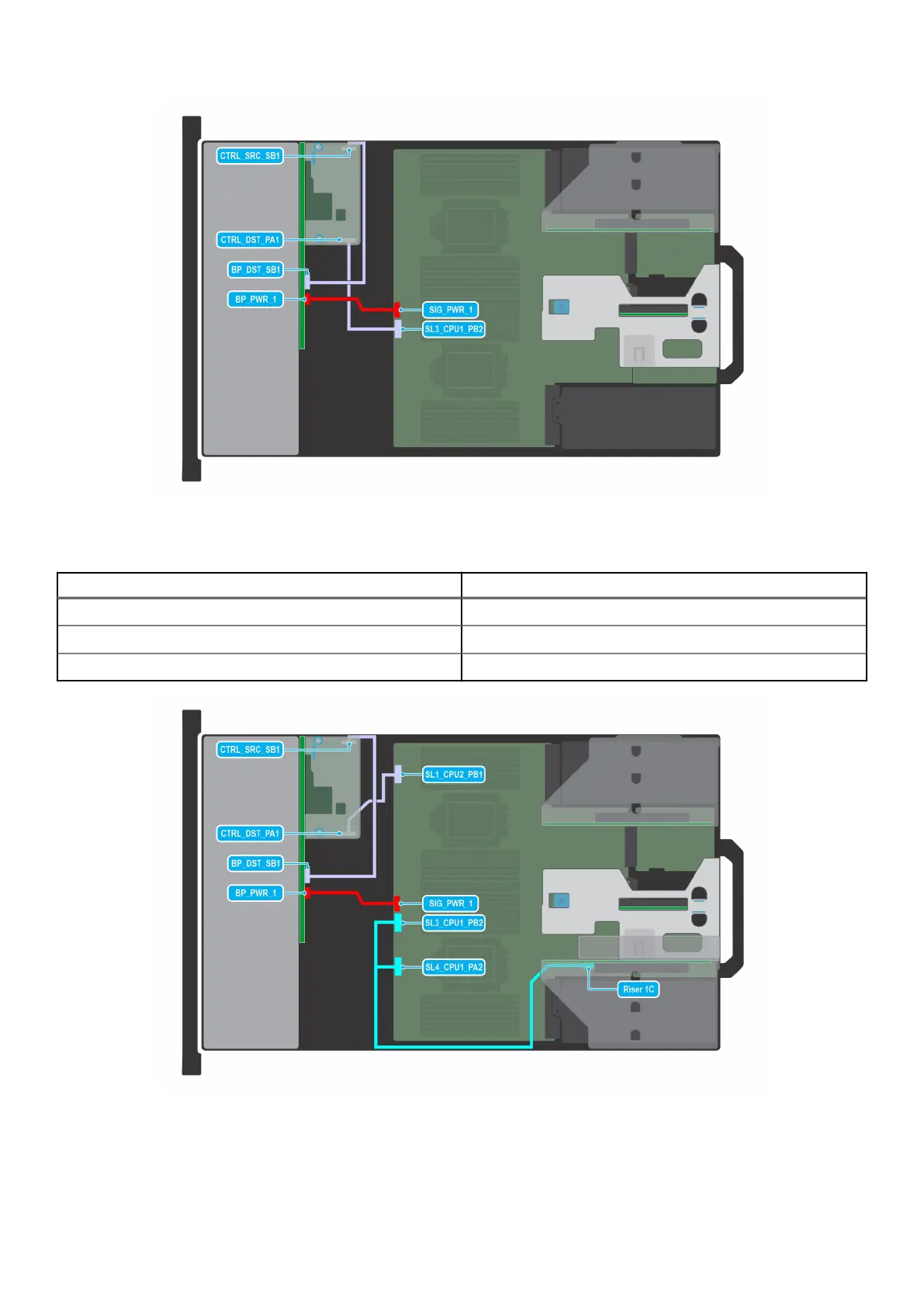

Figure 76. 16 x 2.5-inch SAS/SATA with fPERC
Table 27. 16 x 2.5-inch SAS/SATA with fPERC
From To
SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
CTRL_SRC_SB1 (fPERC controller connector) BP_DST_SB1 (backplane signal connector)
SL3_CPU1_PB2 (signal connector on system board) CTRL_DST_PA1 (fPERC input connector)
Figure 77. 16 x 2.5-inch SAS/SATA with fPERC and Riser 1C
78
Installing and removing system components
