Table 28. 16 x 2.5-inch SAS/SATA with fPERC and Riser 1C
From To
SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
CTRL_SRC_SB1 (fPERC controller connector) BP_DST_SB1 (backplane signal connector) and BP_DST_PB1
(backplane signal connector)
SL1_CPU2_PB1 (signal connector on system board) CTRL_DST_PA1 (fPERC input connector)
SL3_CPU1_PB2 (signal connector on system board) and
SL4_CPU1_PA2 (signal connector on system board)
Riser 1C (signal connector from Riser 1C)

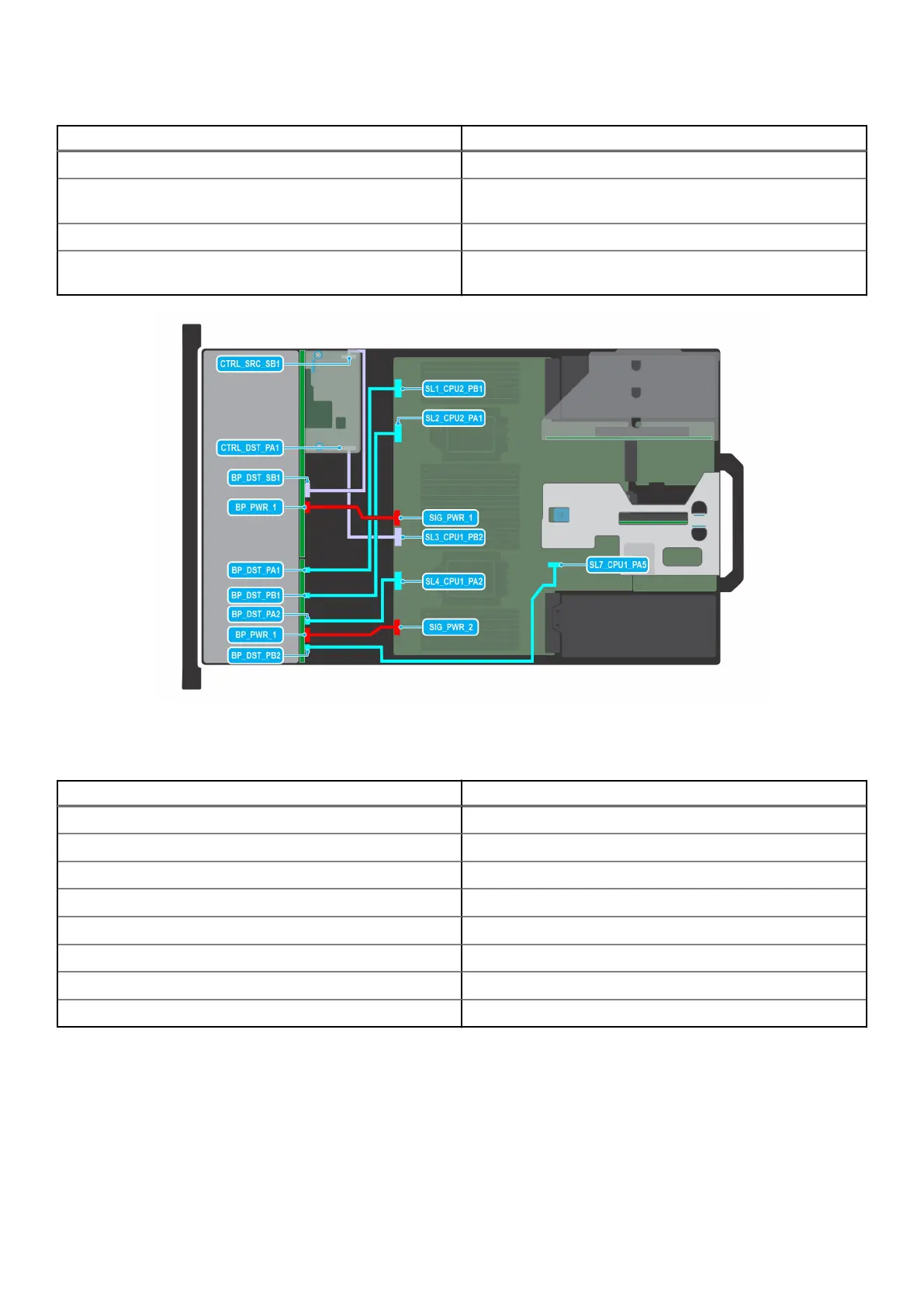

Figure 78. 16 x 2.5-inch SAS/SATA + 8 x 2.5-inch NVMe with fPERC
Table 29. 16 x 2.5-inch SAS/SATA + 8 x 2.5-inch NVMe with fPERC
From To
SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
CTRL_SRC_SB1 (fPERC controller connector) BP_DST_SB1 (backplane signal connector)
SL3_CPU1_PB2 (signal connector on system board) CTRL_DST_PA1 (fPERC input connector)
SL1_CPU2_PB1 (signal connector on system board) BP_DST_PA1 (backplane signal connector)
SL2_CPU2_PA1 (signal connector on system board) BP_DST_PB1 (backplane signal connector)
SL4_CPU1_PA2 (signal connector on system board) BP_DST_PA2 (backplane signal connector)
SL7_CPU1_PA5 (signal connector on system board) BP_DST_PB2 (backplane signal connector)
SIG_PWR_2 (system board power connector) BP_PWR_1 (backplane power connector)
Installing and removing system components 79
