NOTE: For more information, see the Dell EMC PowerEdge R750 Technical Specifications on the product documentation
page.

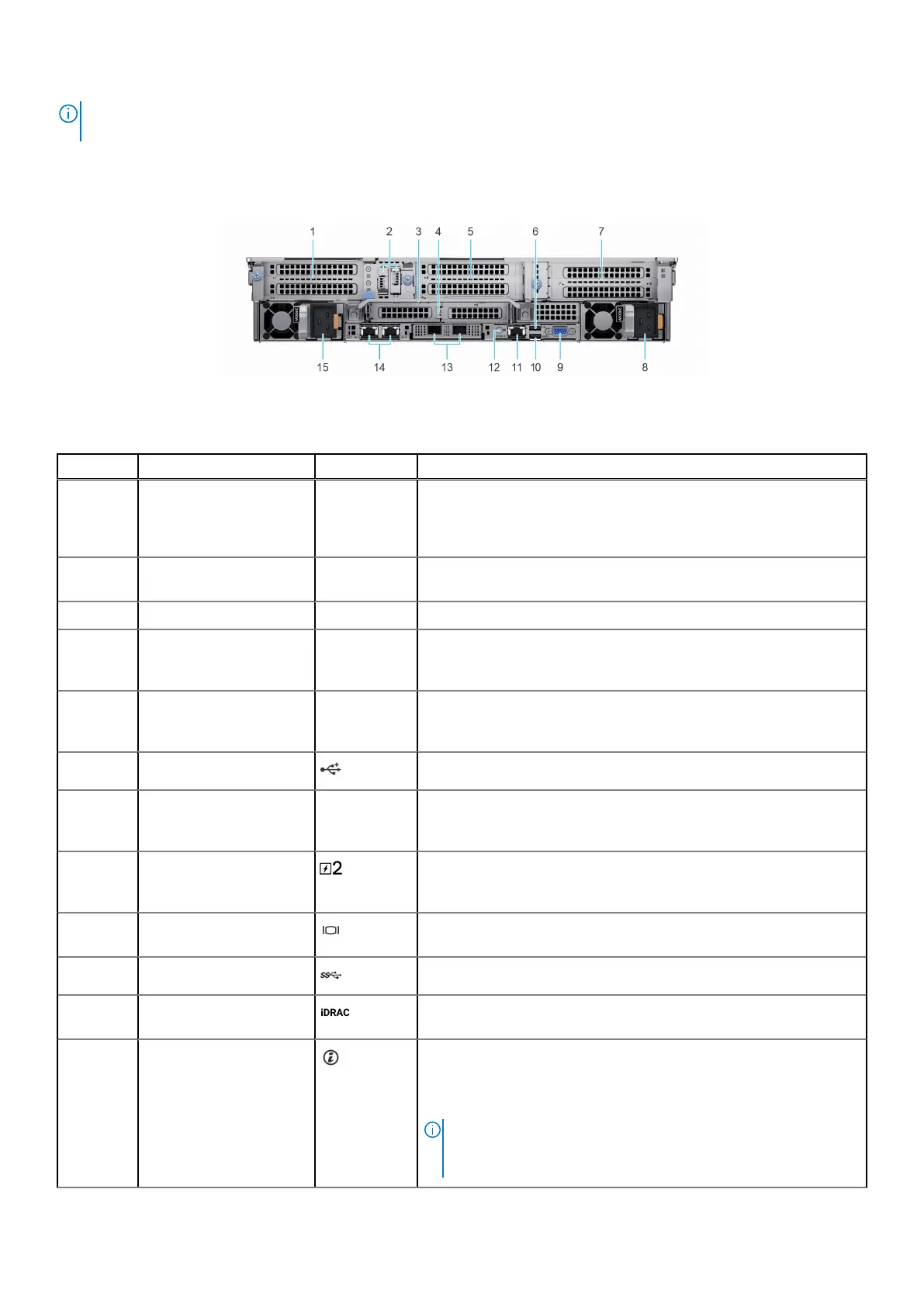

Rear view of the system
Figure 8. Rear view of the system
Table 5. Rear view of the system
Item Ports, panels, or slots Icon Description
1 PCIe expansion card riser
1 (slot 1 and slot 2)
N/A The expansion card riser enables you to connect PCI Express
expansion cards. For more information about the expansion cards
that are supported on your system, see the expansion card guidelines
section.
2 BOSS S2 module
(optional)
N/A This slot supports the BOSS S2 module.
3 Rear handle N/A To lift the system.
4 PCIe expansion card riser
2 (slot 3 and slot 6)
N/A The expansion card riser enables you to connect PCI Express
expansion cards. For more information about the expansion cards
supported on your system, see the expansion card guidelines section.
5 PCIe expansion card riser
3 (slot 4 and slot 5)
N/A The expansion card riser enables you to connect PCI Express
expansion cards. For more information about the expansion cards
supported on your system, see the expansion card guidelines section.
6 USB 2.0 port (1) This port is USB 2.0-compliant.
7 PCIe expansion card riser
4 (slot 7 and slot 8)
N/A The expansion card riser enables you to connect PCI Express
expansion cards. For more information about the expansion cards
supported on your system, see the expansion card guidelines section.
8 Power supply unit (PSU
2)
For more information about the PSU configurations, see the
PowerEdge R750 Technical Specifications on product documentation
page.
9 VGA port For more information about the VGA, see the Dell EMC PowerEdge
R750 Technical Specifications on product documentation page.
10 USB 3.0 port (1) This port is USB 3.0-compliant.
11 iDRAC dedicated port Enables you to remotely access iDRAC. For more information, see the
iDRAC User's Guide at www.dell.com/poweredgemanuals.
12 System identification
button
Press the system ID button:
● To locate a particular system within a rack.
● To turn the system ID on or off.
To reset iDRAC, press and hold the button for more than 16 s.
NOTE:
● To reset iDRAC using system ID, ensure that the system ID
button is enabled in the iDRAC setup.
System overview 13
