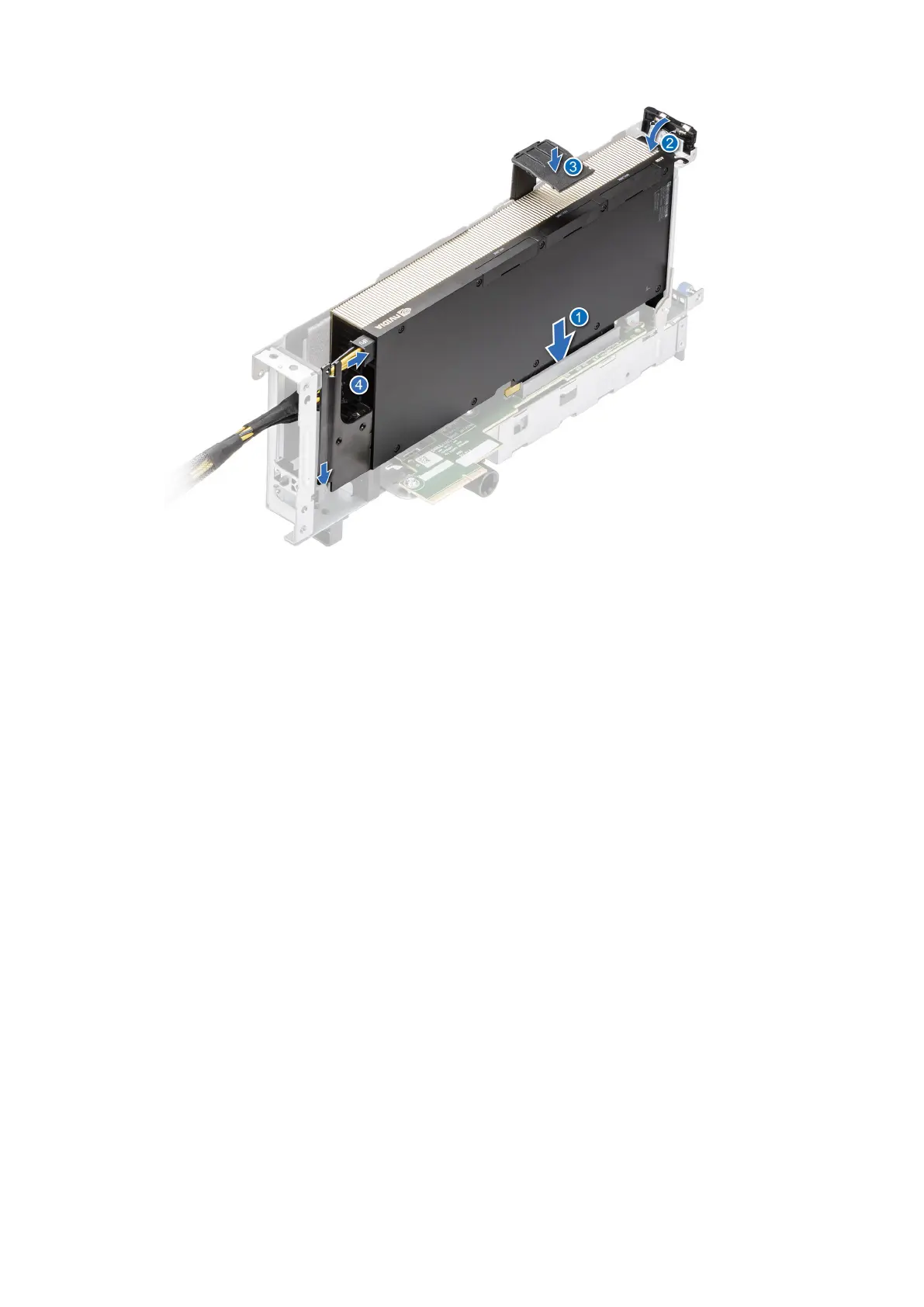

Figure 157. Installing GPU on Riser 1
3. To install the GPU on Riser 4:
a. Align the connector on the GPU with the connector on the riser.
b. Insert the GPU into the riser until firmly seated.
c. Close the expansion card holder latch.
d. Press the card holder latch to secure the GPU card to the riser.
e. Connect the GPU power cable to the GPU card.
f. Close the expansion card latch on the riser.
