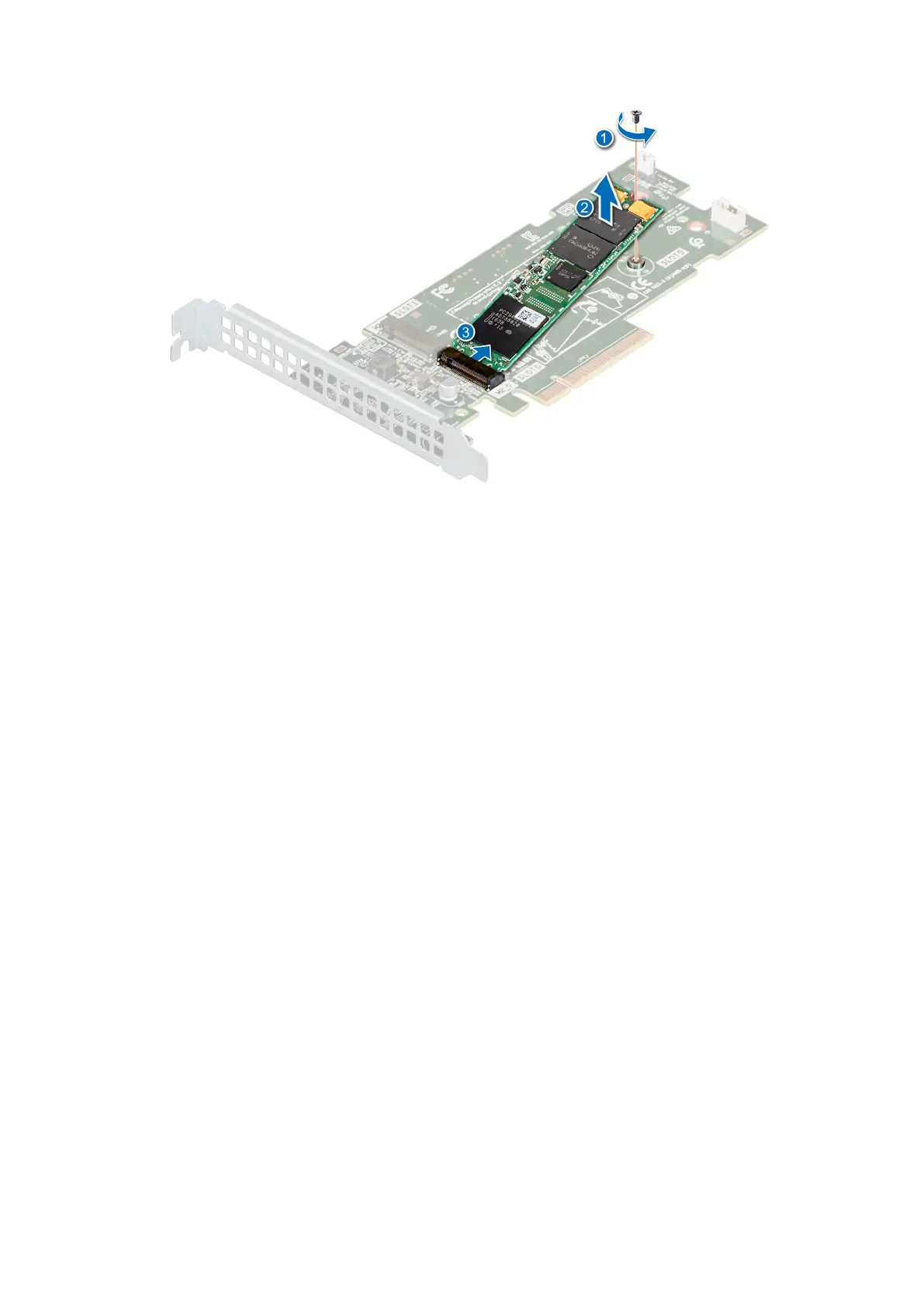

Figure 118. Removing the M.2 SSD module
Next steps
1. Replace the M.2 SSD module.
Installing the M.2 SSD module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the BOSS card. Removing BOSS card is similar to removing expansion card from the expansion card riser.
Steps
1. Align the M.2 SSD module at an angle with the BOSS card connector.
2. Insert the M.2 SSD module until it is firmly seated in the BOSS card connector.
3. Using the Phillips #1 screwdriver, secure the M.2 SSD module on the BOSS card with the screw.
Installing and removing system components
143

Dell EMC PowerEdge R7525 Specifications

General

Form Factor	2U Rack
Processor	Up to two AMD EPYC 7002 or 7003 Series processors, up to 64 cores per processor
Memory	32 DDR4 DIMM slots, up to 4TB
Storage	Up to 24x 2.5" SAS/SATA/NVMe drives, or 12x 3.5" SAS/SATA drives
RAID Controller	PERC H345
Power Supply	1100W Platinum
PCIe Slots	Up to 8 x PCIe Gen4 slots
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
