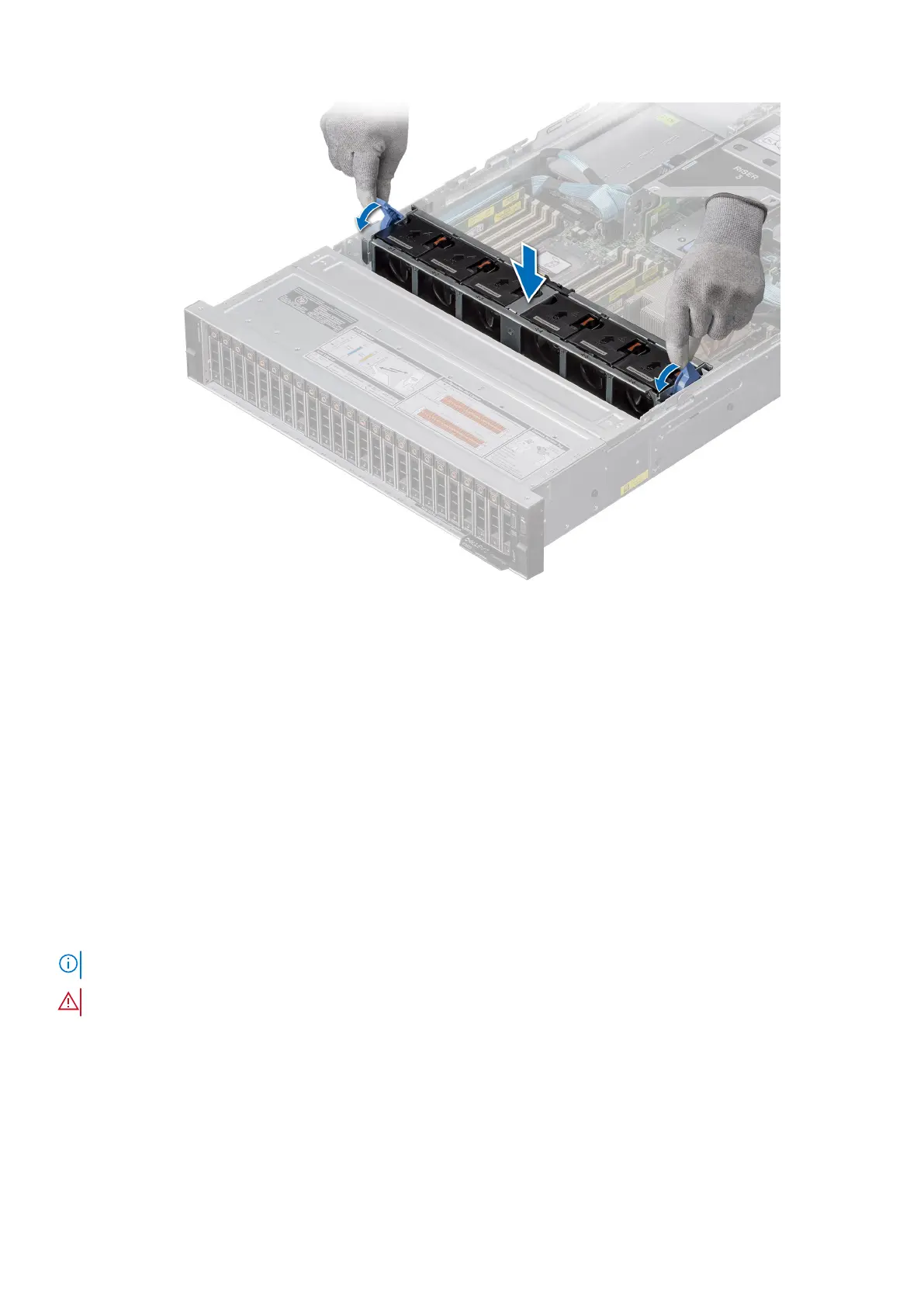

Figure 48. Installing the cooling fan cage assembly
Next steps
1. If removed, install the air shroud.
2. Follow the procedure listed in After working inside your system.
Removing a cooling fan
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If installed, remove the air shroud.
Steps
Press the orange release tab and lift the cooling fan to disconnect the fan from the connector on the system board.
NOTE: The procedure to remove standard, high-performance (silver grade), or high-performance (gold grade) fan is same.
WARNING: Ensure not to tilt or rotate the cooling fan while removing from the system.
Installing and removing system components 53
