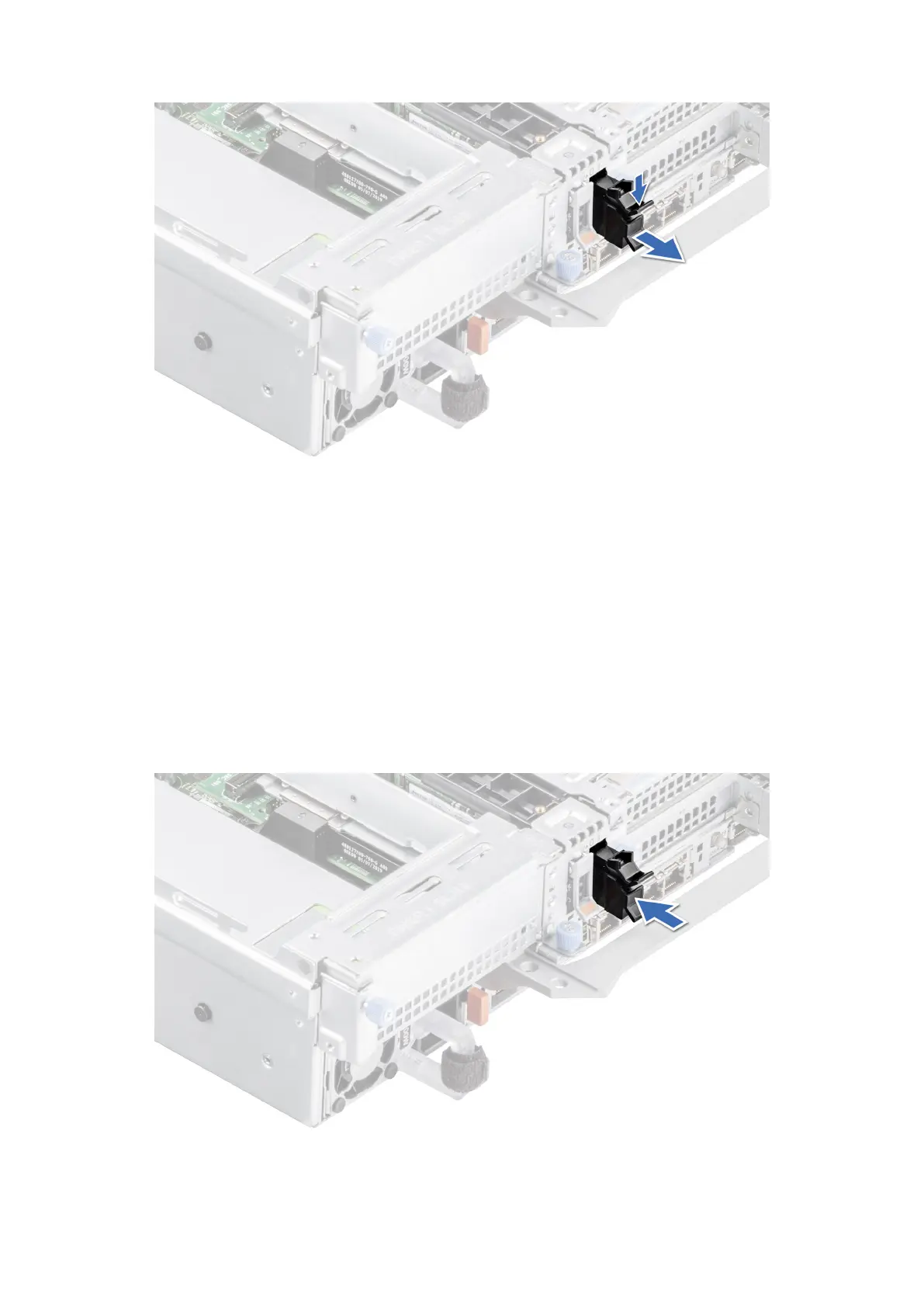

Figure 120. Removing the BOSS card filler
Next steps
1. Replace the BOSS card filler or BOSS S2 controller card module.
Installing the BOSS card filler
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
Steps
Align the BOSS card filler with the BOSS S2 controller card module bay and push it into the bay until it clicks into place.
Figure 121. Installing the BOSS card filler
Installing and removing system components
145
