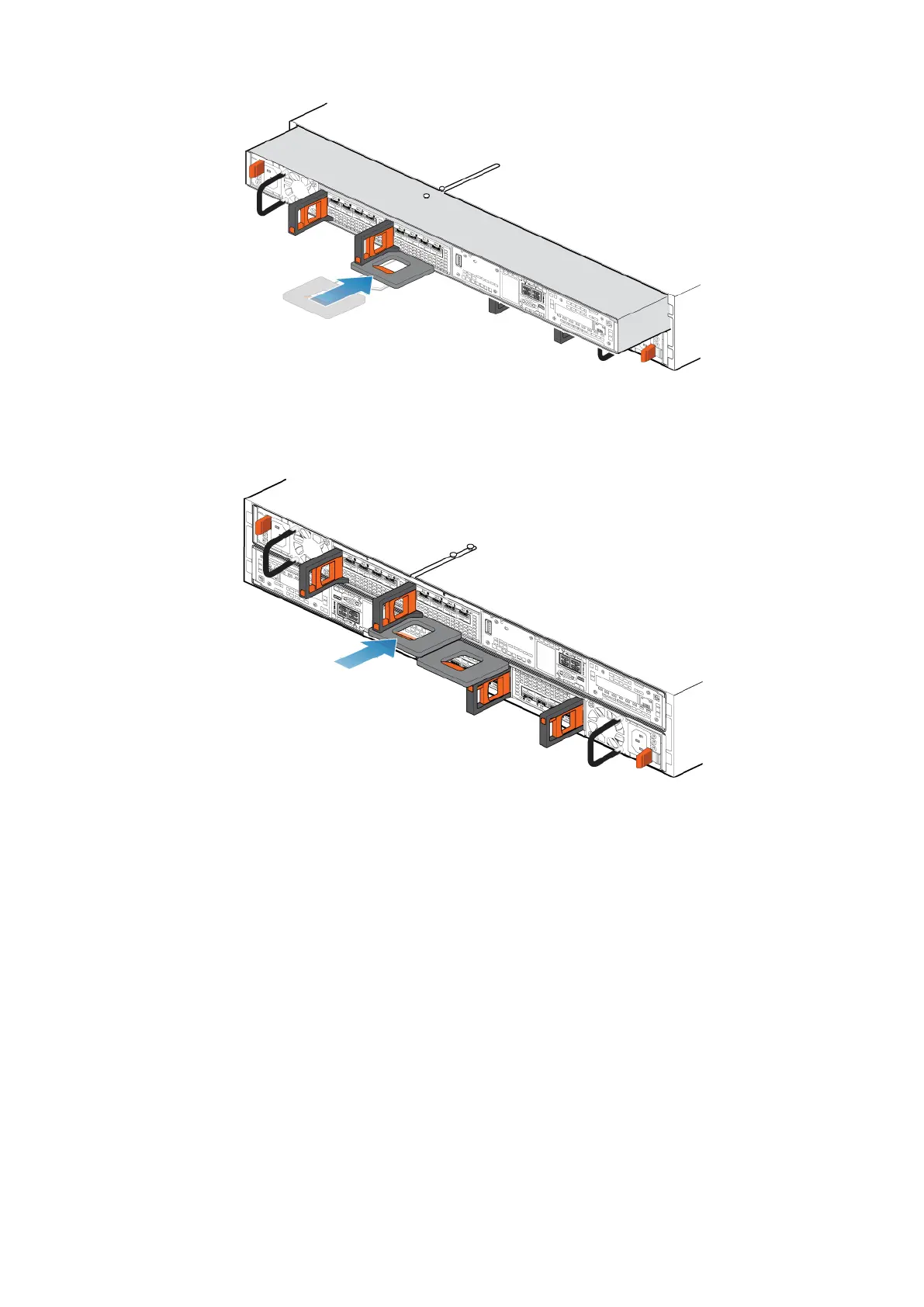

Figure 112. Sliding the node halfway into the chassis
3. Pull the black release tab out completely, and slide the rest of the node back into the chassis.
The black release tab slides back into the system as it is inserted.
Figure 113. Installing the node
4. Pull the orange release trigger and push in gently to re-engage the locking mechanism.
If the black release tab comes out when pulled, the locking mechanism is not engaged.
Power up the node
Power up the node as described in Power control procedures.
Verify the operation of a replacement node
Steps
1. From PowerStore Manager, select Hardware.
2. Select the appliance where you replaced the node.
3. On the Components card, under Rear View, expand BaseEnclosure.
4. Select the relevant Node.
