Dell EMC Virtual Edge Platform 1405 Series User Manual

Configure BIOS to boot from USB
To configure the BIOS to boot from the USB:
1. Boot the VEP1405 system and go to the BIOS settings screen.
2. From the BIOS screen, select the Advanced tab.
3. Using the arrow keys, select CSM Configuration and then press Enter.

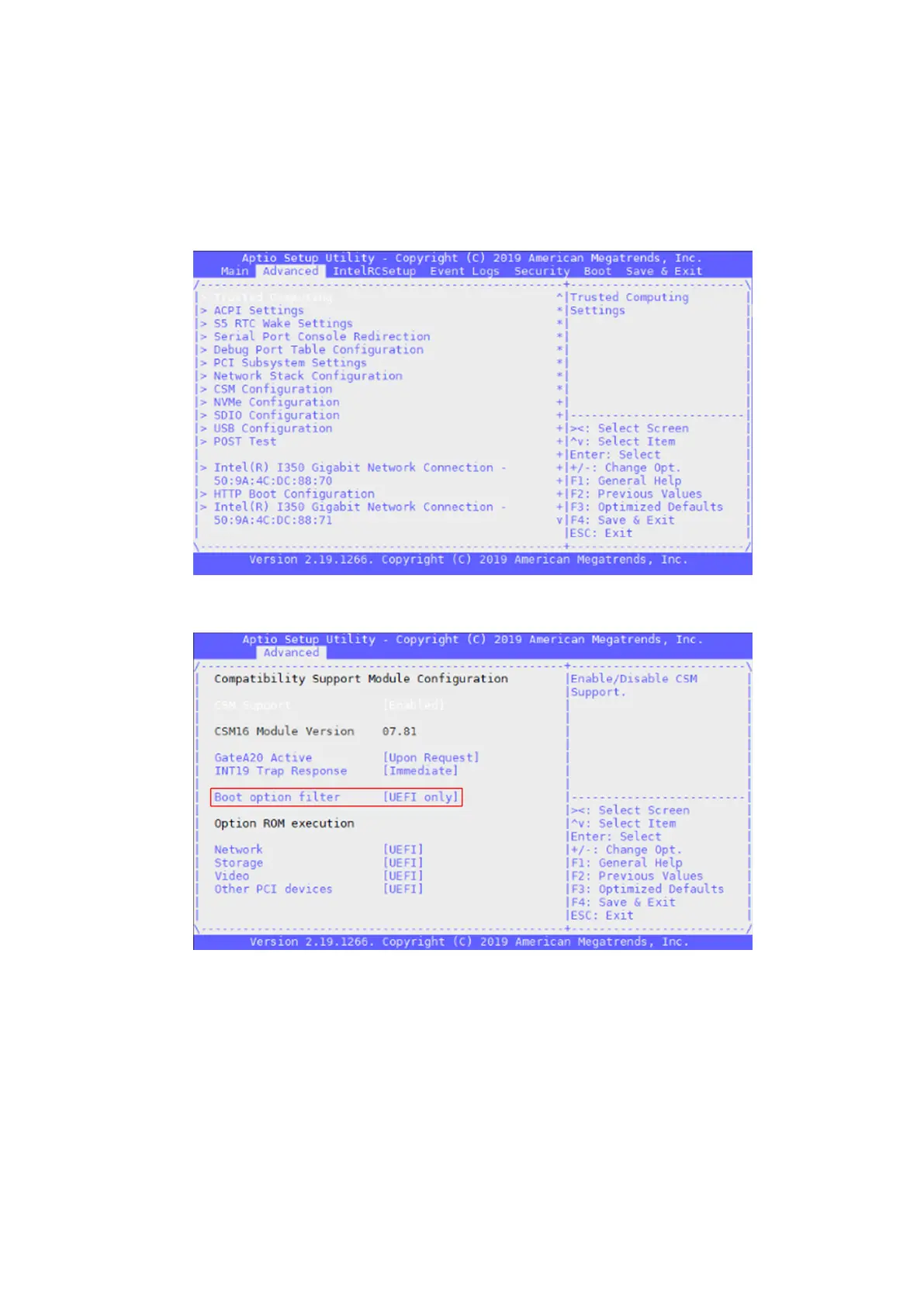

Figure 32. BIOS screen - Advanced tab
4. From the CSM Configuration screen, verify that UEFI is selected for the Boot option filter.
Figure 33. CSM Configuration screen
5. From the Boot Configuration screen, configure the USB stick as Boot Option 1, and then press Enter to save the change.
Download and install VMware ESXi 7.0
27
