4 Installing the Hardware

Install chassis into 2-post rack or cabinet

Attach a Ground Cable

The S4810 is shipped with 1 M4x0.7 screw for attaching a ground cable to the

chassis. The cable itself is not included. Dell Force10 recommends a 6AWG

one-hole lug, #10 hole size, 63" spacing (not included in shipping) to properly

ground the chassis. The one-hole lug must be a UL recognized, crimp-type lug.

NOTE: The rack installation ears are not suitable for grounding.

CAUTION: Grounding conductors must be made of copper. Do not use

aluminum conductors.

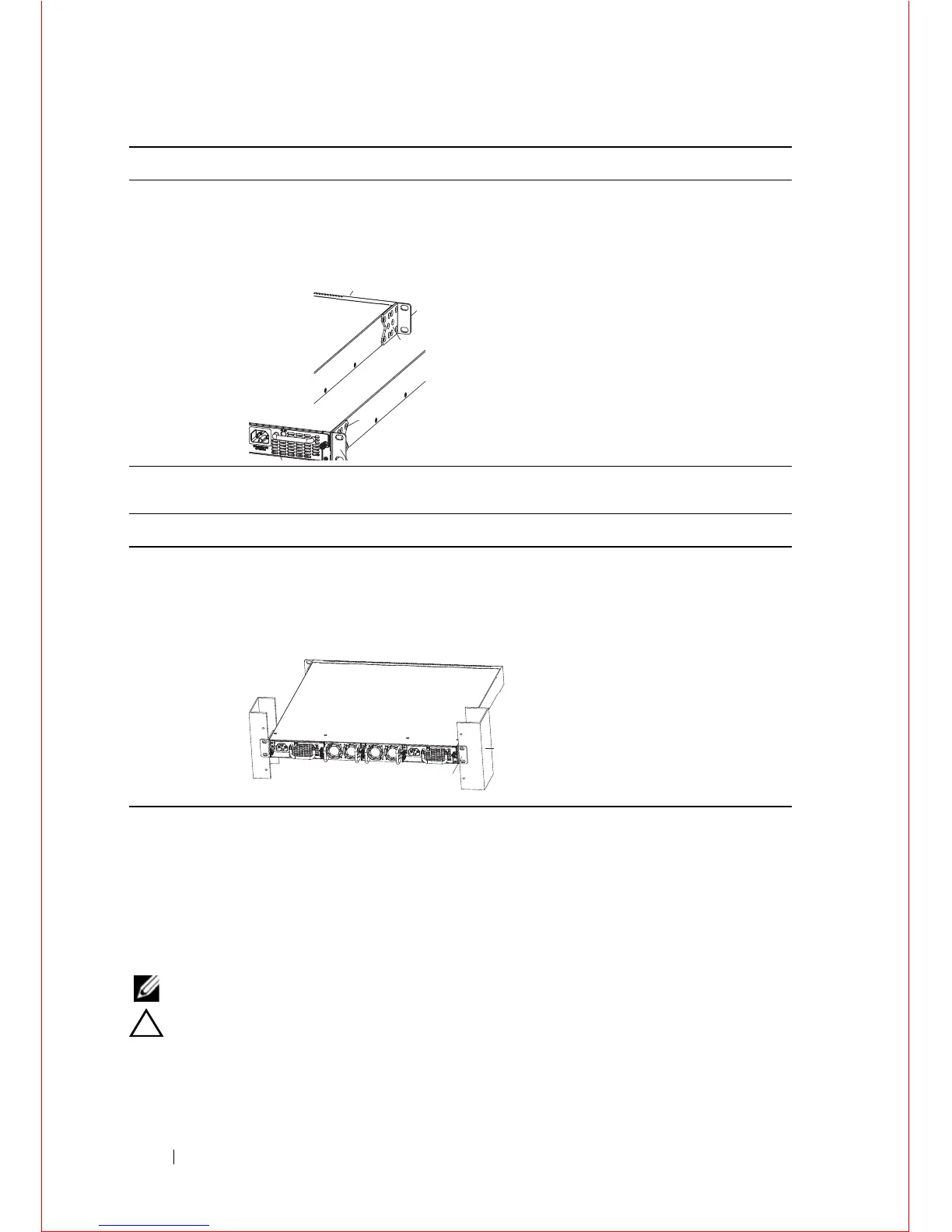

2 Attach the brackets to the sides of the chassis at the PSU end, using four

screws for each bracket.

Attach the bracket so that the “ear” faces to the PSU and the outside of

the chassis.

Step Task

1 Dell Force10 recommends that one person hold the S4810 chassis in

place while a second person attaches the brackets to the posts.

2 Attach the bracket "ears" to the rack or cabinet posts, using two screws

for each bracket. Ensure the screws are tightened firmly.

Step Task

View from chassis I/O side

View of chassis PSU side

Power Supply

Screws

Connect to

Rack/Cabinet

(ears)

Connect to

PSU0

PSU1

Rack/Cabinet

Post

Rack Mounting

Ears
