Installation 17
4
Repeat this procedure for the second rail.
Two-post Center-mount Configuration:
1
Slide the plunger bracket rearward until it clicks into place and secure the
bracket to the front post flange with two user-supplied screws. Refer
to Figure 1-7, item 1.

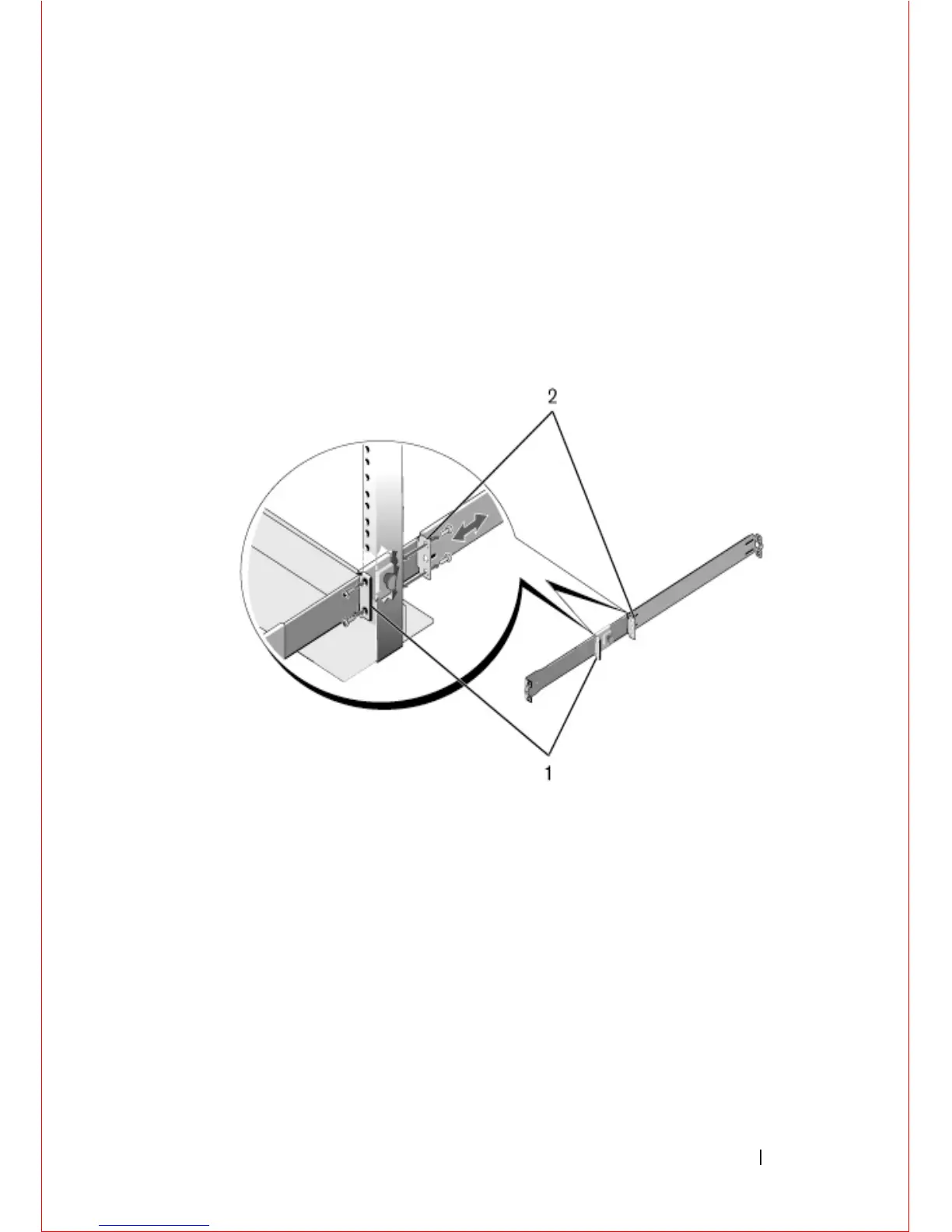

Figure 1-7. Two-post Center-mount Configuration
2
Slide the back bracket towards the post and secure it to the post flange
with two user-supplied screws. Refer to Figure 1-7, item 2.
3
Repeat this procedure for the second rail.
