5. To remove control panel assembly:
a. Using a Phillips 2 screwdriver, remove the screws that secure the control panel assembly to the cage.
b. Slide out and remove the control panel assembly from the cage.

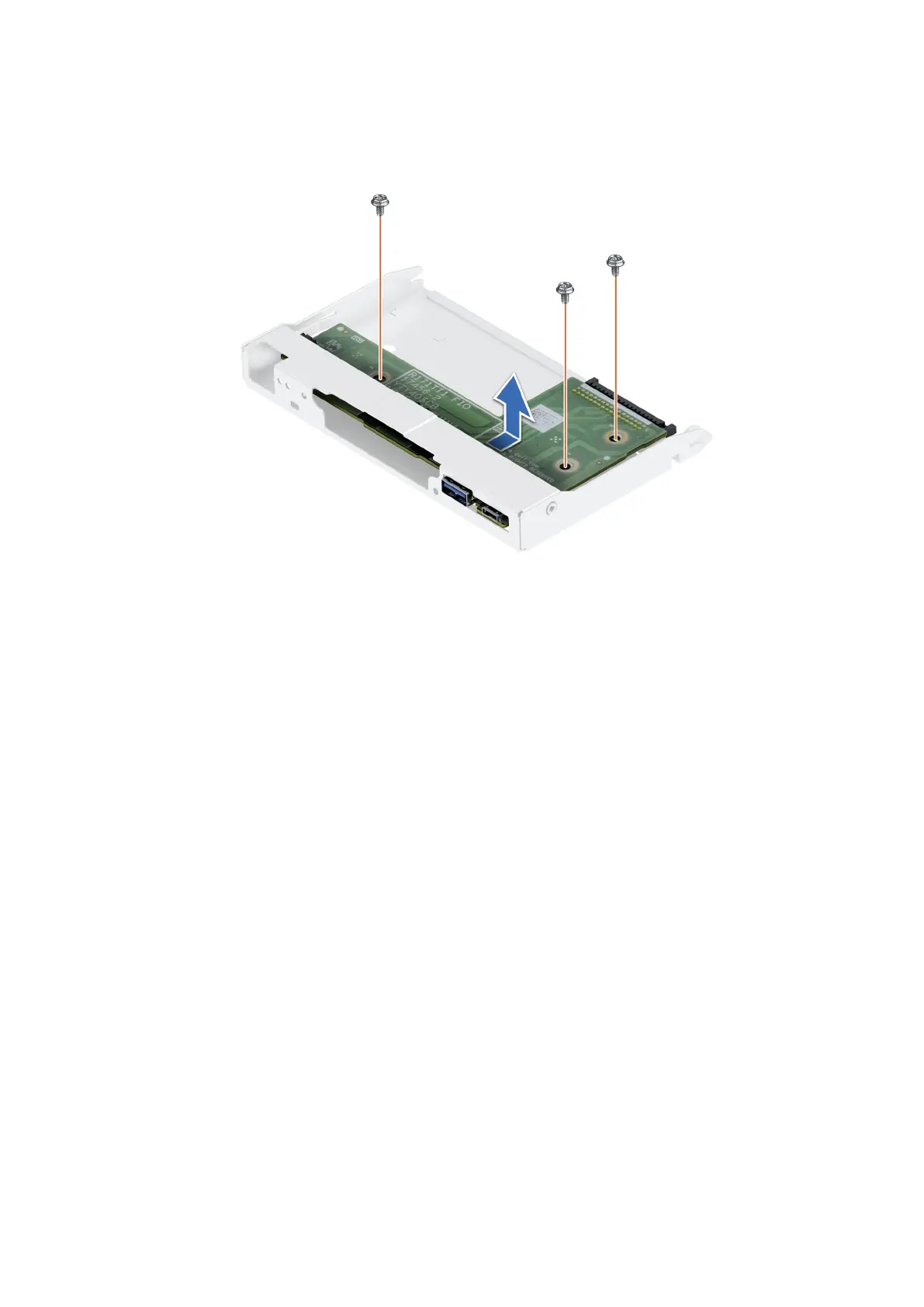

Figure 97. Removing the control panel assembly
Next steps
1. Replace the control panel assembly.
Installing the control panel assembly
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the front bezel.
Steps
1. To install control panel assembly:
a. Align and slide the control panel assembly into the control panel cage.
b. Using a Phillips 2 screwdriver, tighten the screws that secure the control panel assembly to the cage.
108
Installing and removing system components
