Dell G0N7D - Removing the BOSS S2 Module

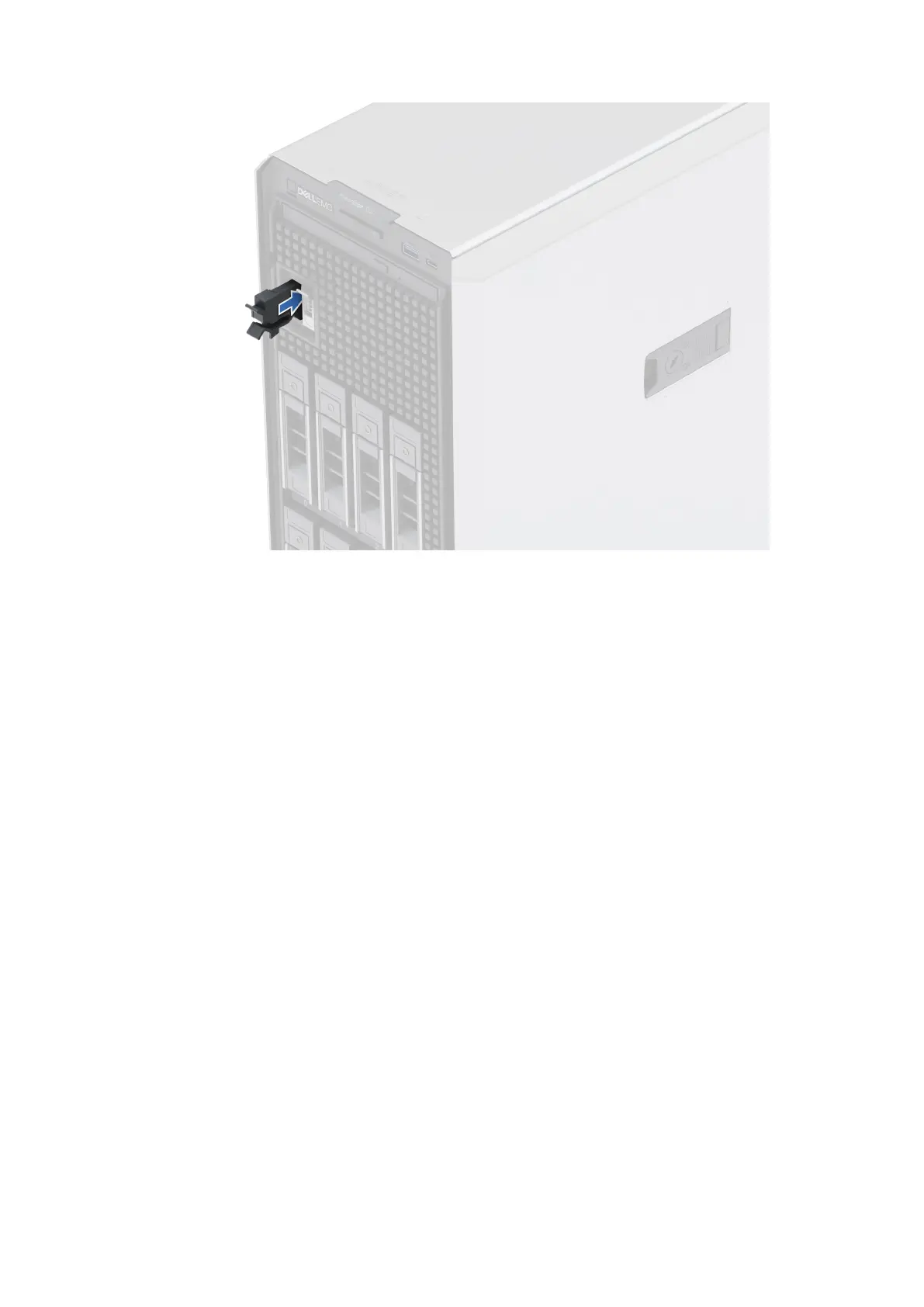

Figure 62. Installing the BOSS S2 card carrier blank
Removing the BOSS S2 module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the front bezel.
4. Disconnect the BOSS S2 power and signal cable from the BOSS S2 module and the system board.
Steps
1. Pull and lift the BOSS S2 card carrier retention latch lock to open.
2. Slide the BOSS S2 card carrier out.
Installing and removing system components
75
