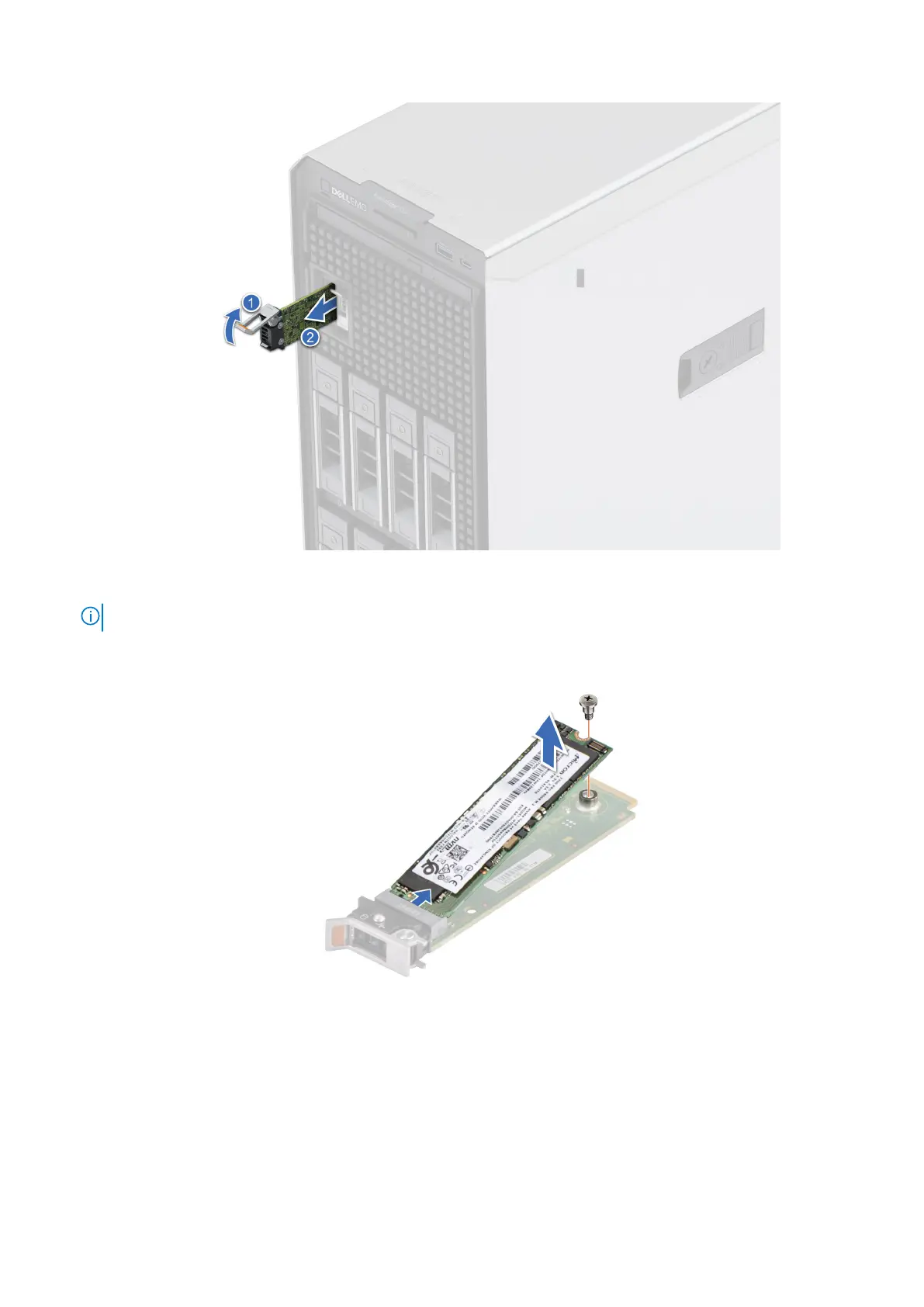

Figure 63. Removing the BOSS S2 card carrier
NOTE: If BOSS S2 card carrier is not being replaced insert BOSS S2 card carrier blank.
3. Using the Phillips 1 screwdriver remove the M3 x 0.5 x 4.5 mm screw that secures the M.2 SSD to the BOSS S2 card carrier.
4. Slide the M.2 SSD out from the BOSS S2 card carrier.
Figure 64. Removing the M.2 SSD
5. Loosen the captive screw and pull out the BOSS module cage along with BOSS S2 module form the system bay.
76
Installing and removing system components
