Dell G0N7D - Installing the BOSS S2 Module

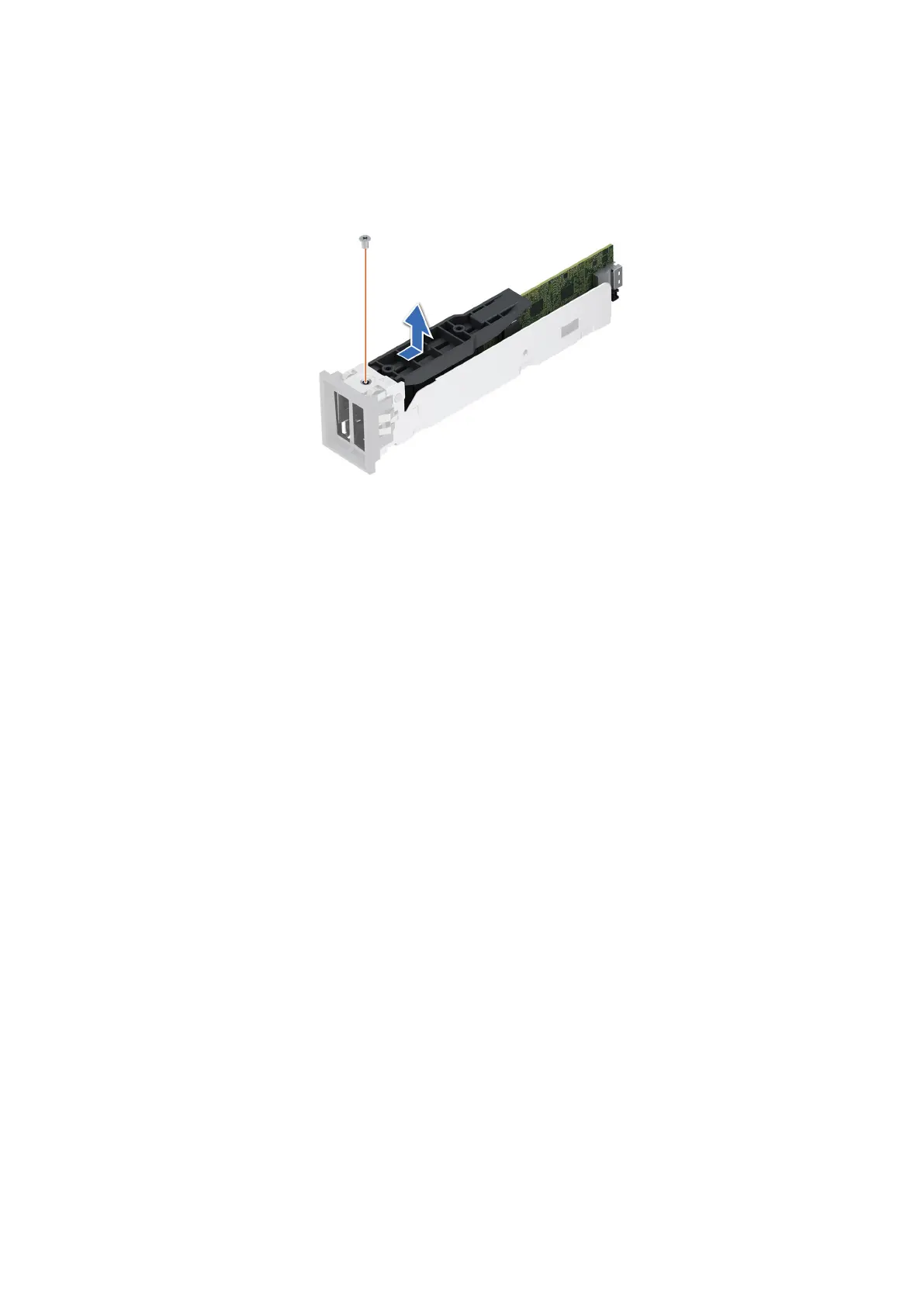

Figure 66. Removing the BOSS S2 module
Next steps
1. Replace the BOSS S2 module or Install the BOSS S2 module blank.
Installing the BOSS S2 module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the front bezel.
4. Remove the BOSS S2 module blank.
5. Disconnect the BOSS S2 power and signal cable from the module and system board.
Steps
1. Align and slide the BOSS S2 module into BOSS S2 module cage and secure it with a screw using the Phillips 1 screwdriver.
