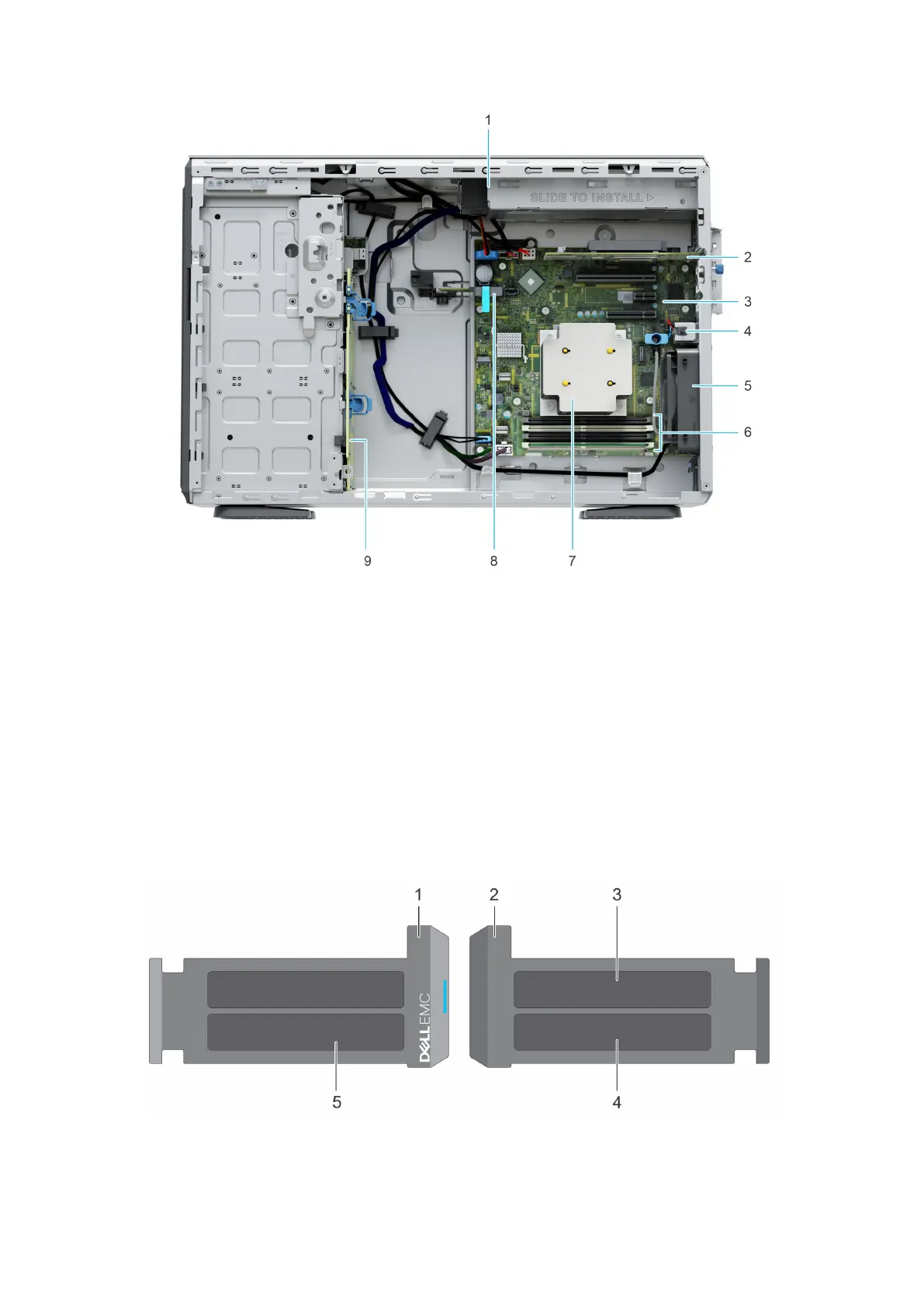

Figure 6. Inside the system with cabled PSU
1.
Cabled PSU 2. PCIe expansion card
3. System board 4. Intrusion switch
5. Cooling fan 6. Memory module sockets
7. Heat sink 8. Internal Dual SD module (IDSDM)/USB card (optional)
9. Backplane
Locating the Express Service Code and Service Tag
The unique Express Service Code and Service Tag are used to identify the system.
The information tag is located on the front of the system that includes system information such as the Service Tag, Express
Service Code, Manufacture date, NIC, MAC address, QRL label, and so on. If you have opted for the secure default access to
iDRAC, the Information tag also contains the iDRAC secure default password.
Figure 7. Locating the Express Service Code and Service tag
1. Information tag (front view)
PowerEdge T350 system overview
