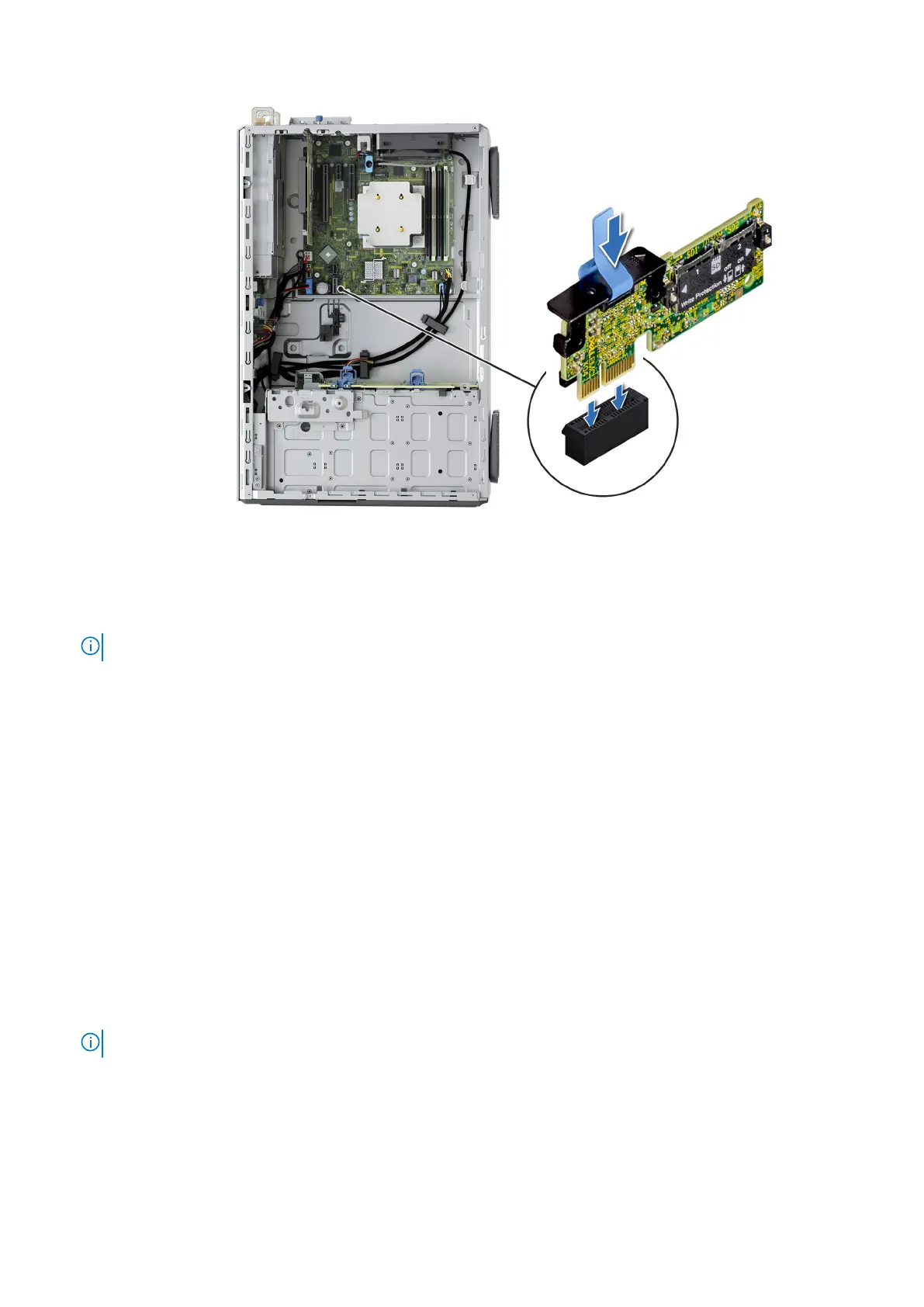

Figure 72. Installing the IDSDM module
Next steps
1. Install the MicroSD cards.
NOTE: Reinstall the MicroSD cards into the same slots based on the labels you had marked on the cards during removal.
2. Install the air shroud.
3. Follow the procedure listed in the After working inside your system.
MicroSD card
Removing the MicroSD card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the IDSDM module.
Steps
1. Locate the MicroSD card slot on the IDSDM module, and press the card to partially release it from the slot. For more
information on the IDSDM module location, see System board jumpers and connectors section.
2. Hold the MicroSD card, and remove them from the IDSDM module.
NOTE: Temporarily label each MicroSD card with the corresponding slot number after removal.
Installing and removing system components 83
