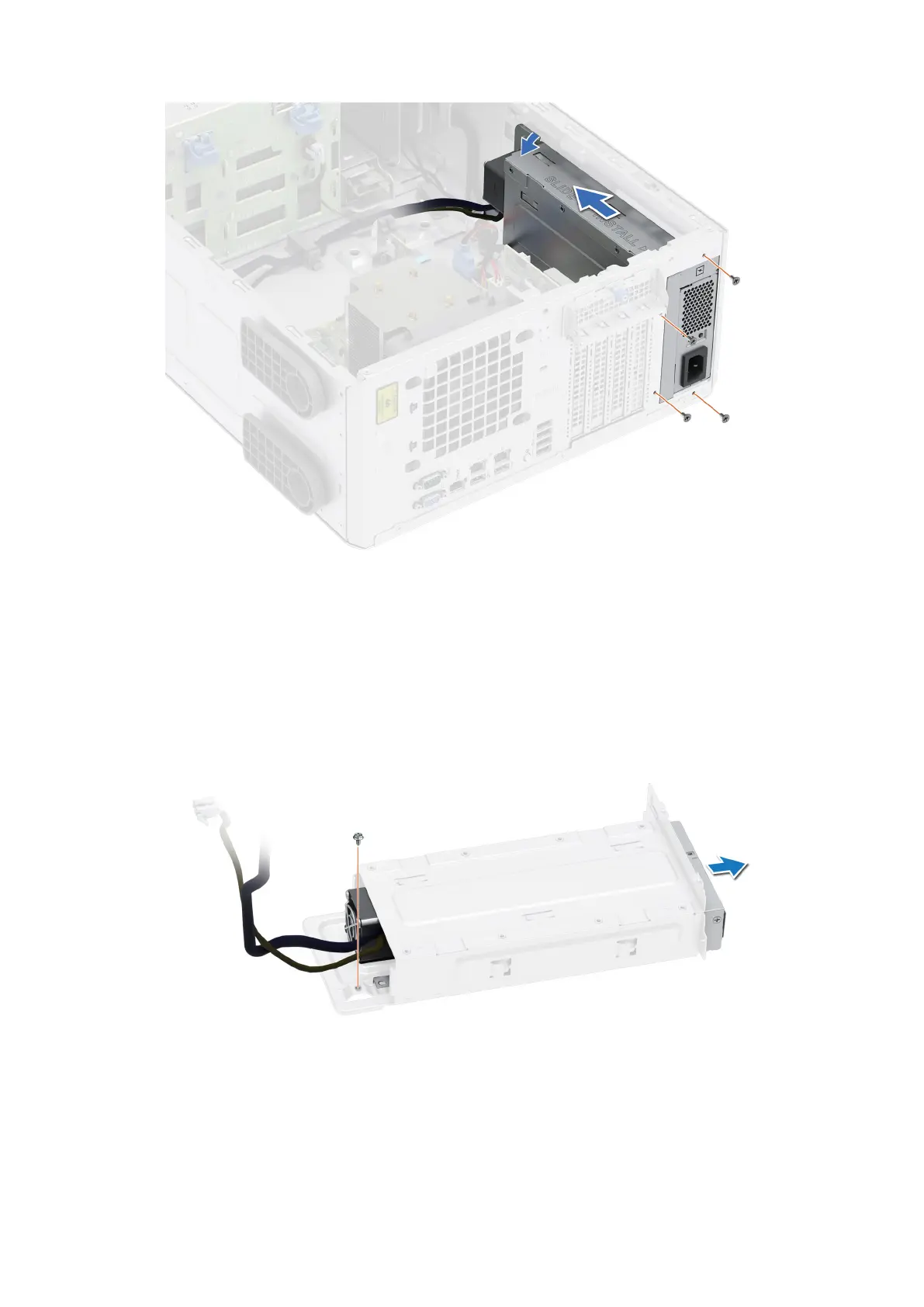

Figure 81. Removing the PSU cage
4. Using a Phillips 2 screwdriver, remove the screw that secures the PSU into PSU cage.
5. Slide the PSU out of the PSU cage.
Figure 82. Removing the cabled PSU
92
Installing and removing system components
