Dell G15 5511 - I;O Board; Removing the I;O Board - Shipped with Flexible Printed Circuit (FPC)

I/O board
Removing the I/O board - shipped with flexible printed circuit
(FPC)
Prerequisites
For computers shipped with NVIDIA GeForce RTX 3060
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task

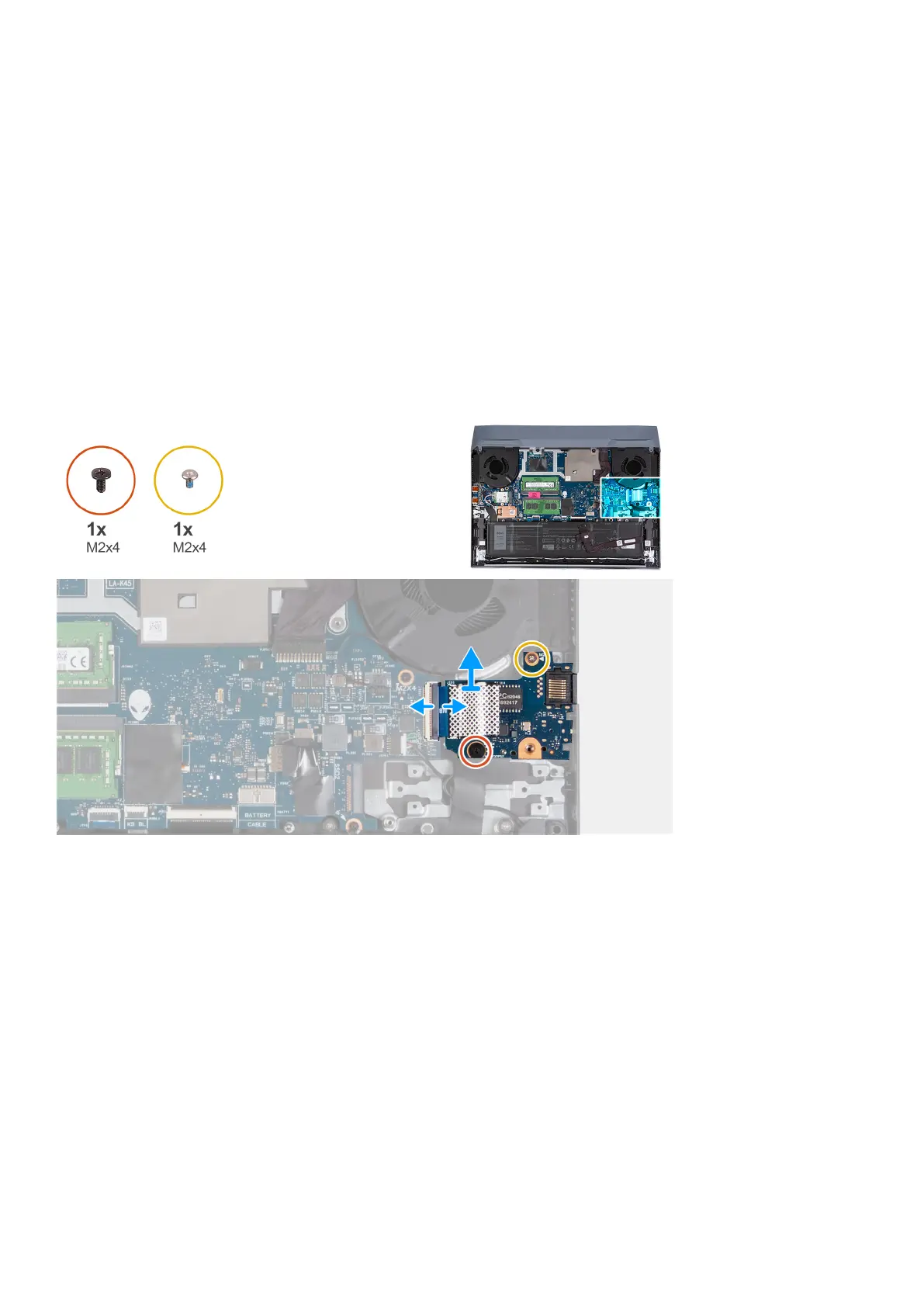

The following image indicates the location of the I/O board on computers shipped with NVIDIA GeForce RTX 3060 and
provides a visual representation of the removal procedure.
Steps
1. Open the latch and disconnect the I/O board cable from the system board.
2. Remove the two screws (M2x4) that secure the I/O board to the palm-rest and keyboard assembly.
3. Remove the I/O board from the palm-rest and keyboard assembly.
Removing I/O board - shipped with M.2 connector
Prerequisites
For computers shipped with NVIDIA GeForce RTX 3050, and NVIDIA GeForce RTX 3050 Ti
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the rear cover.
5. Remove the solid-state drive 1.
6. Remove the solid-state drive 2.
