Installing the heat sink
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

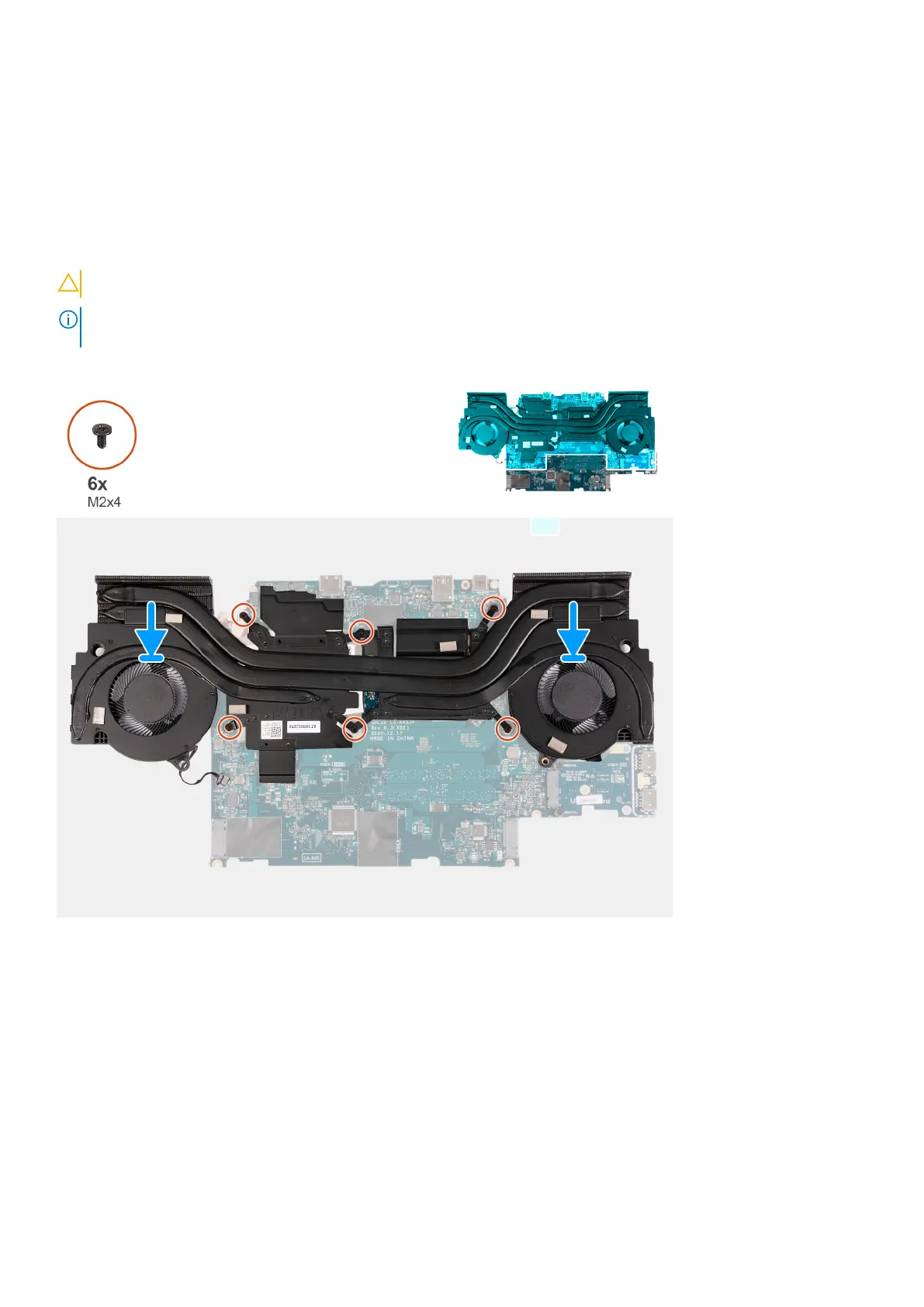

The following image indicates the location of the heat sink and provides a visual representation of the installation procedure.
CAUTION: Incorrect alignment of the heat sink can damage the system board and processor.
NOTE: If either the system board or the heat sink is replaced, use the thermal pad/paste provided in the kit to ensure that
thermal conductivity is achieved.
Steps
1. Place the heat sink on the system board and align the screw holes on the heat sink with the screw holes on the system
board.
2. Replace the six screws (M2x4) that secure the heat sink to the system board.
3. Turn the system board over and align the screw holes on the system board with the screw holes on the palm-rest and
keyboard assembly.
Next steps
1. Follow the procedure from step 2 to step 20 in Replacing the system board.
2. Install the memory module.
3. Install the wireless card.
4. Install the solid-state drive 2.
