7. Remove the wireless card.
8. Remove the memory module.
9. Remove the system board.
NOTE: System board can be removed with the heat sink, I/O board, and USB board attached.
About this task

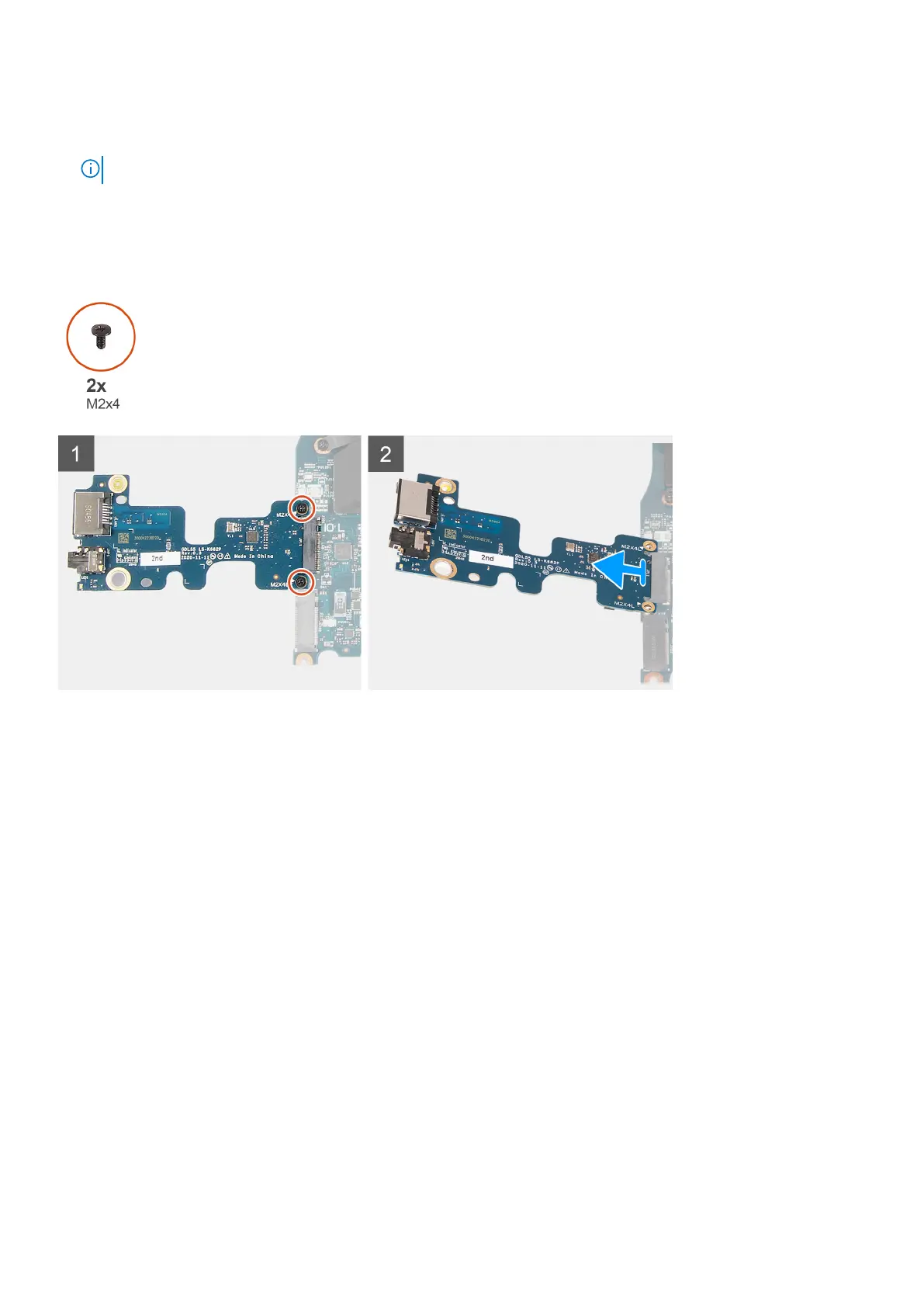

The following image indicates the location of the I/O board on computers shipped with NVIDIA GeForce RTX 3050, and
NVIDIA GeForce RTX 3050 Ti and provides a visual representation of the removal procedure.
Steps
1. Turn the system board over.
2. Remove the two screws (M2x4) that secure the I/O board to the system board.
3. Remove the I/O board from the system board.
Installing the I/O board - shipped with flexible printed circuit
(FPC)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the I/O board on computers shipped with NVIDIA GeForce RTX 3060 and
provides a visual representation of the installation procedure.
